NDI Inputs allow you to bring in any NDI stream within your VPN as an VVCR Stream. This can be used to bring in NDI streams from a Production Module.
NDI Inputs only work on clusters with transcoding enabled.

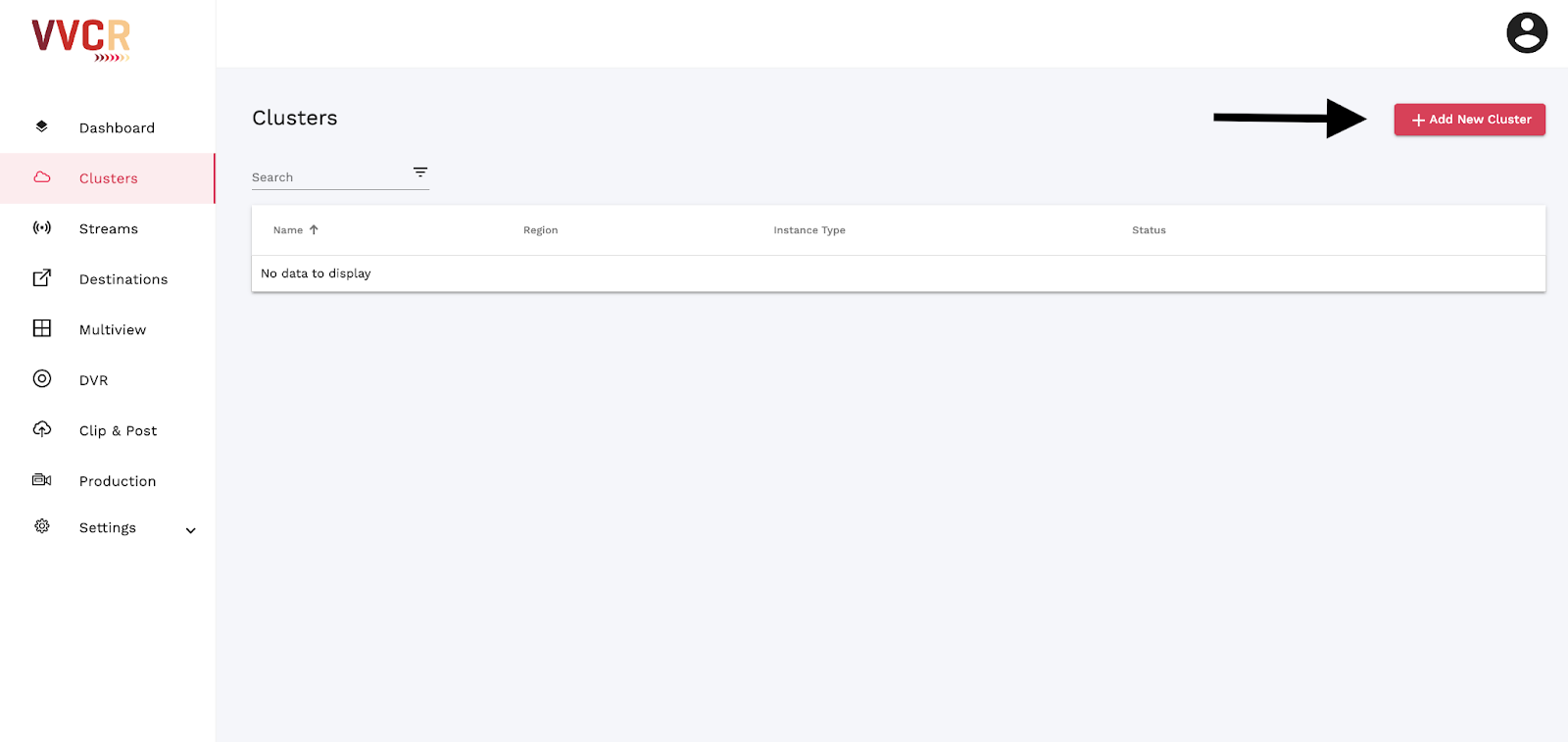

Go to the Clusters tab and click Add New Cluster.

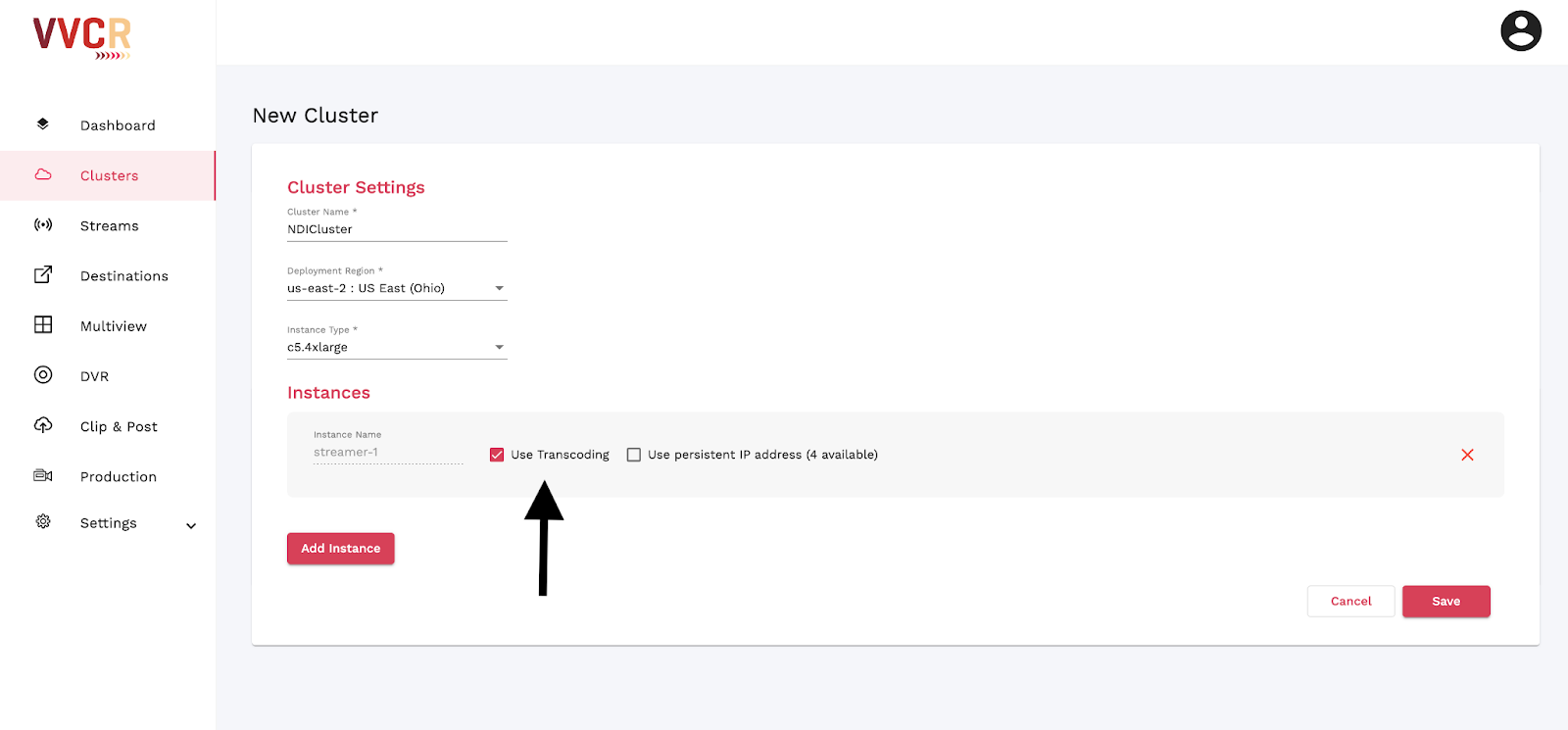

Add a Name, select a Region, and select an Instance Type. Under the Instances section, enable Use Transcoding.

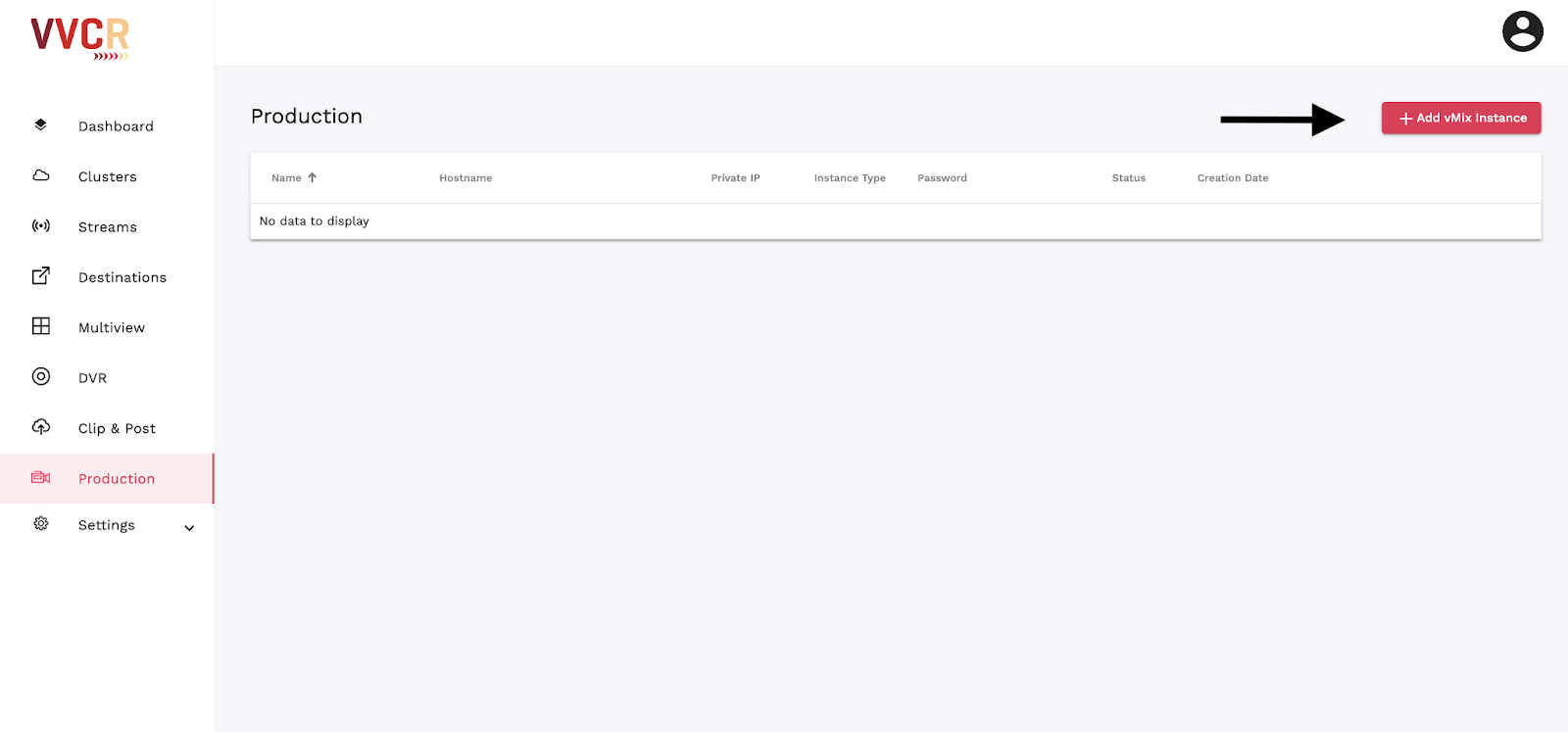

Once the Cluster is Active, go to the Production Tab and click Add vMix Instance.

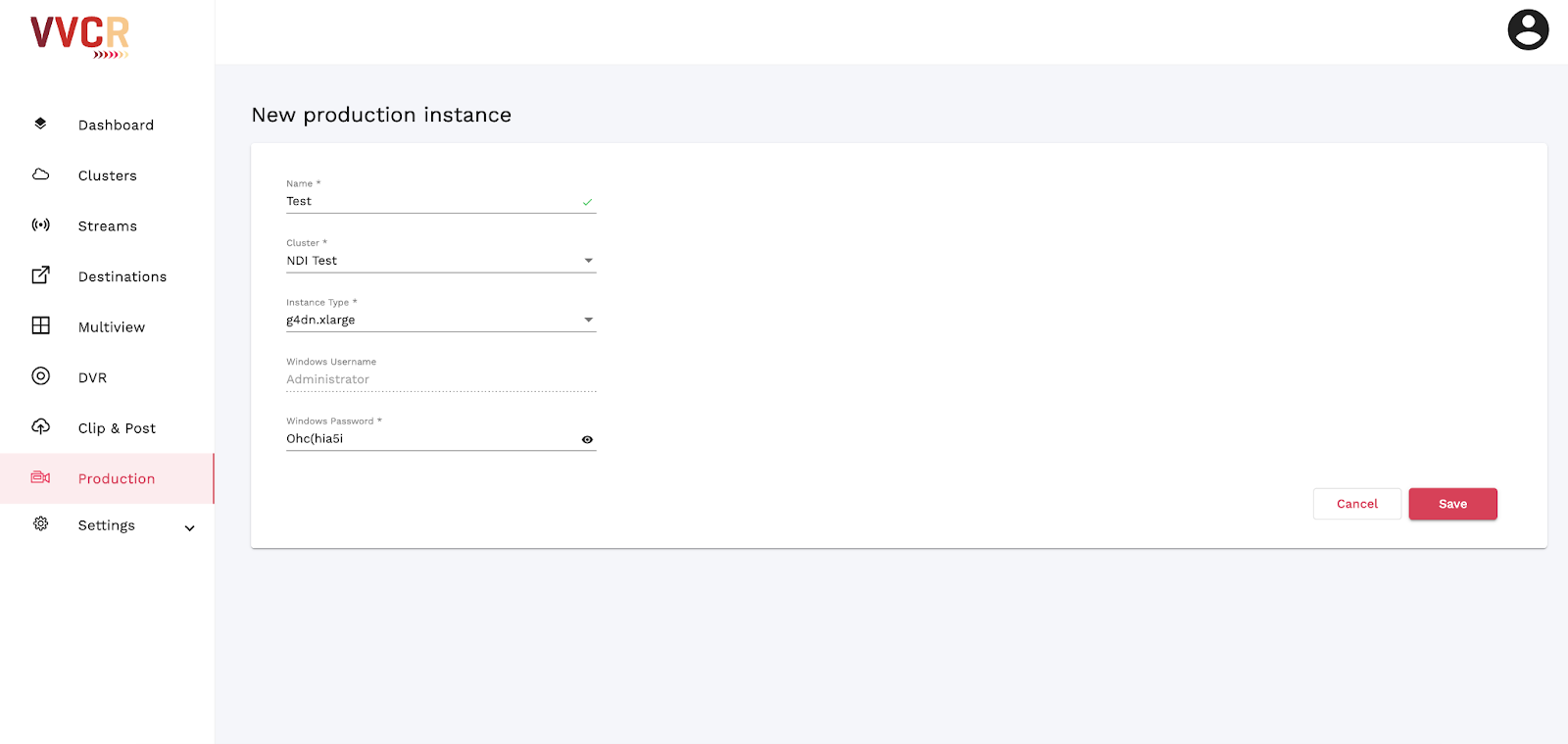

Add a Name, select an Instance Type, and press Save.

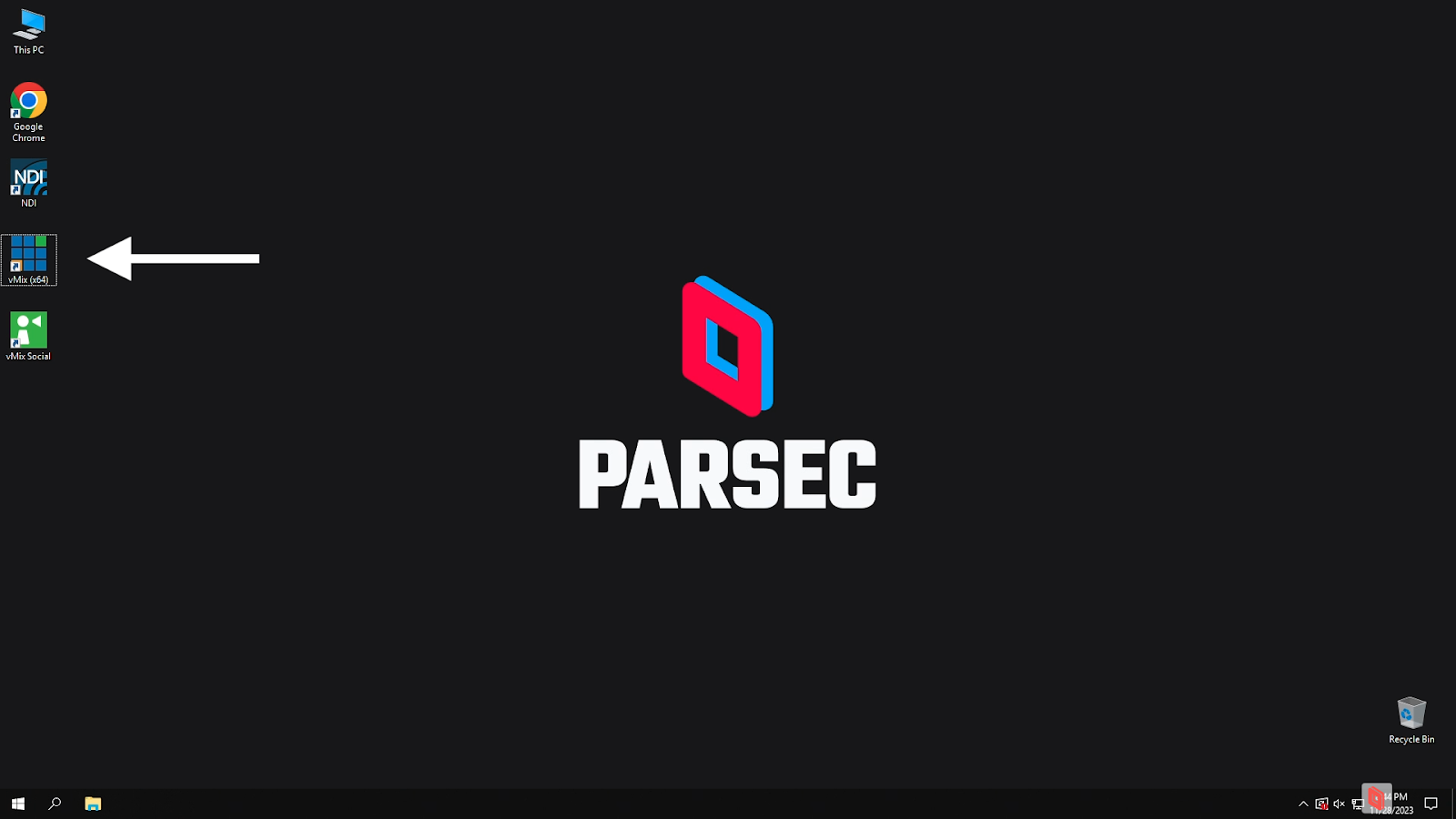

Once the instance is active, open Parsec and connect to the instance.
Open vMix and add a License Key if needed.

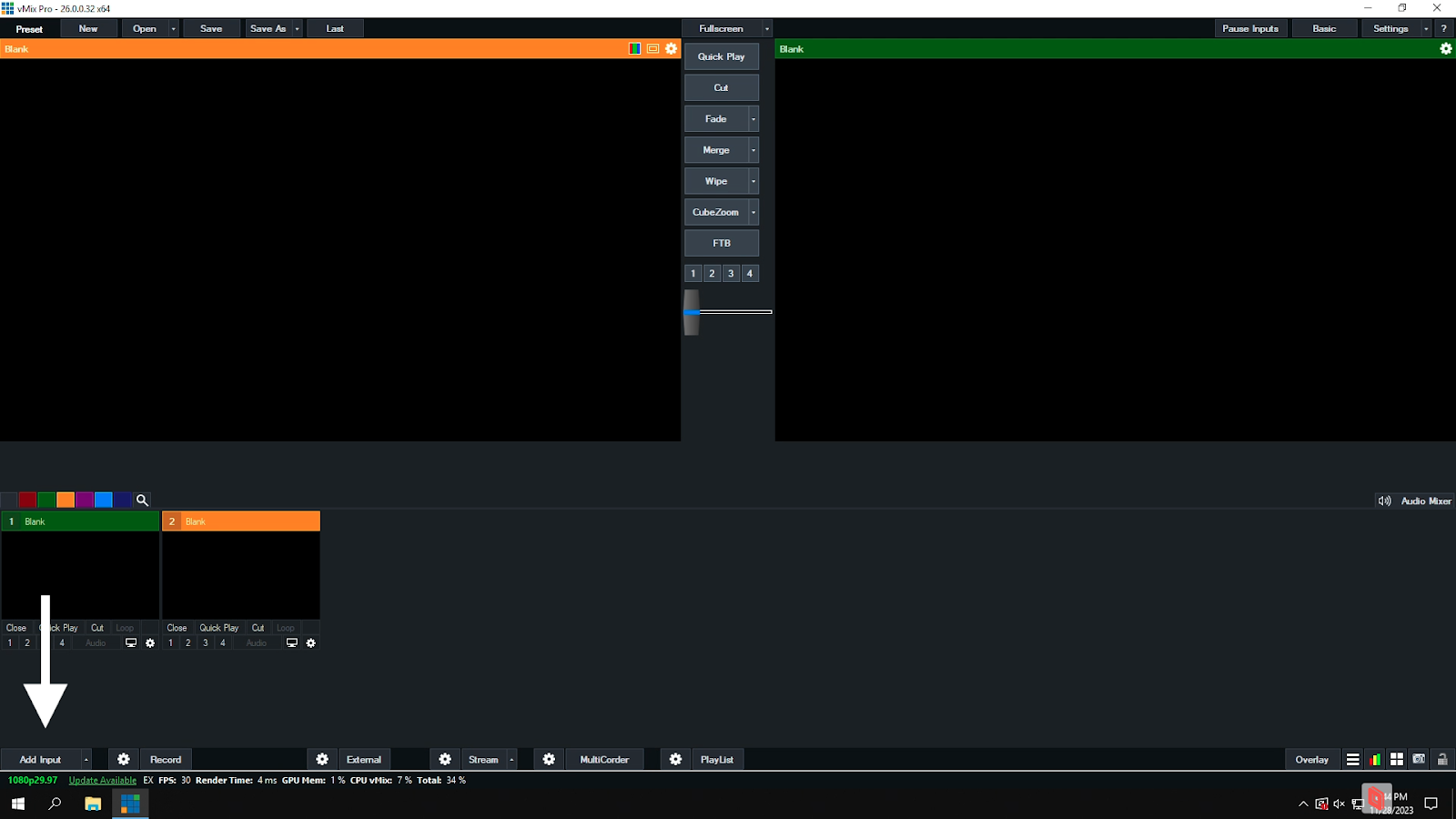

Click Add Input and add any streams, graphics, or media you need for your stream.

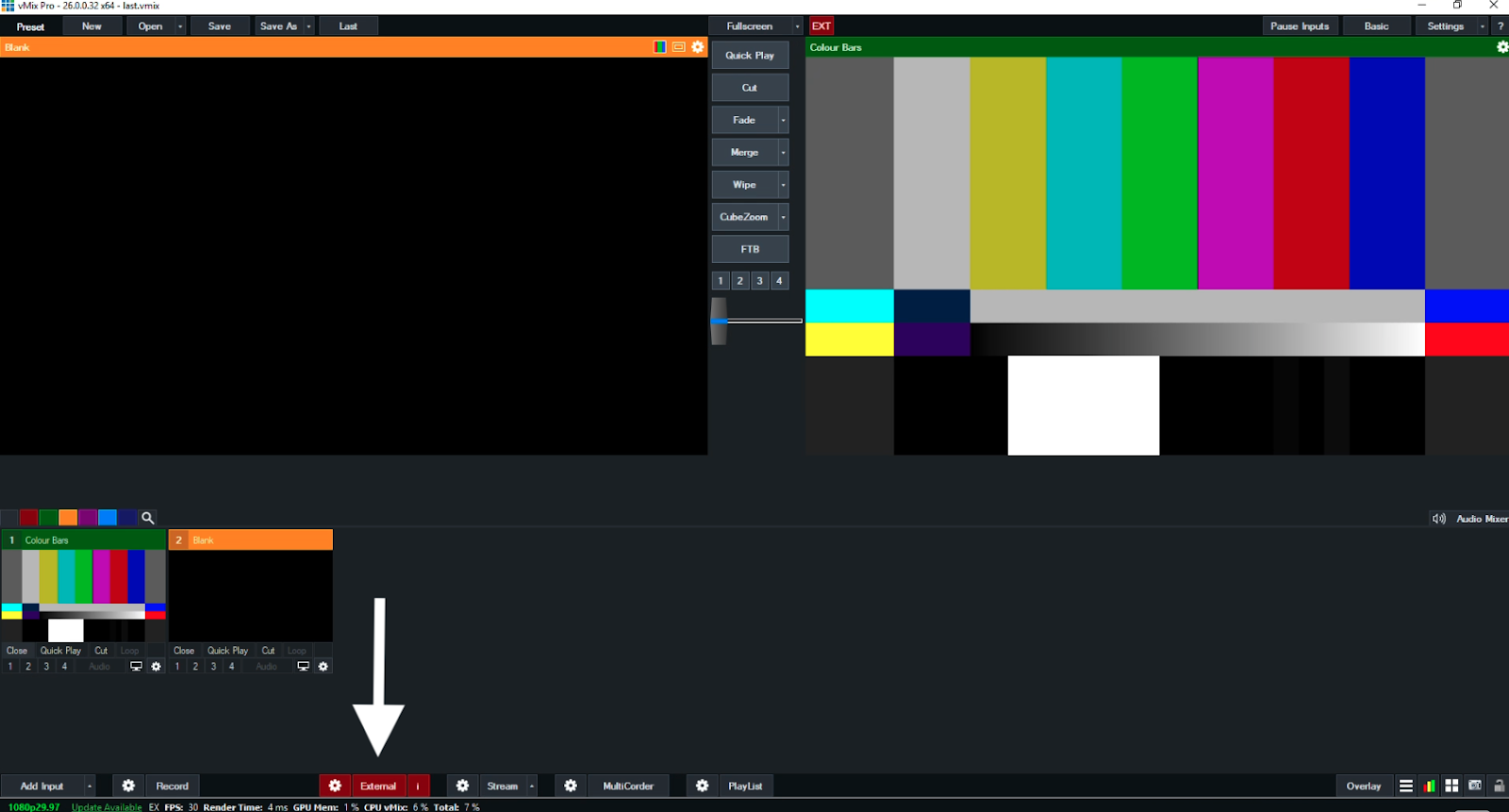

Once you're ready to send the stream to VVCR, click on the cogwheel next to the External tab and go to the Outputs / NDI / SRT section.

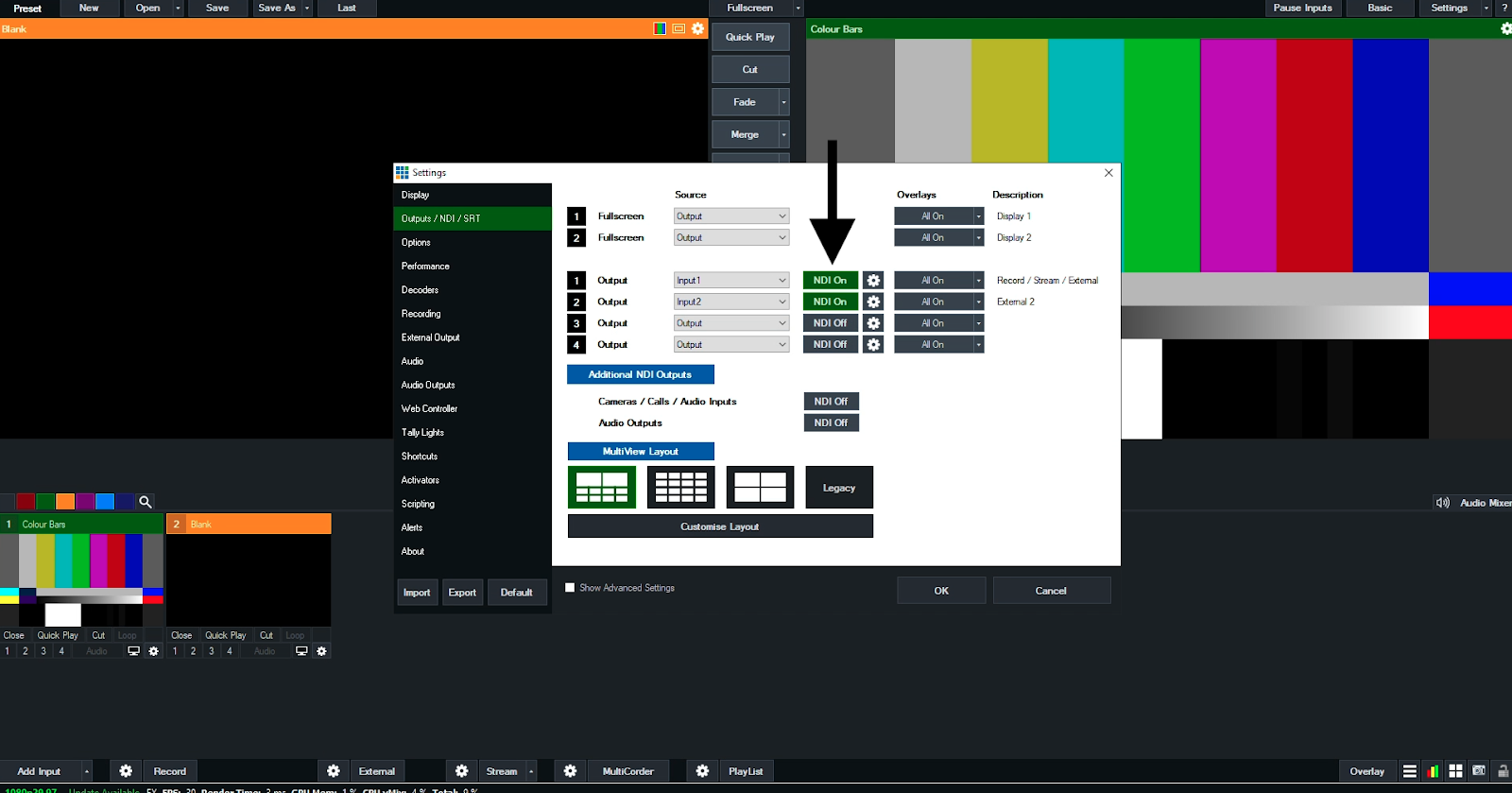

Click NDI On next to any Output you want to send to VVCR.
Go back to VVCR and click on the Streams tab. Click Add New Stream.

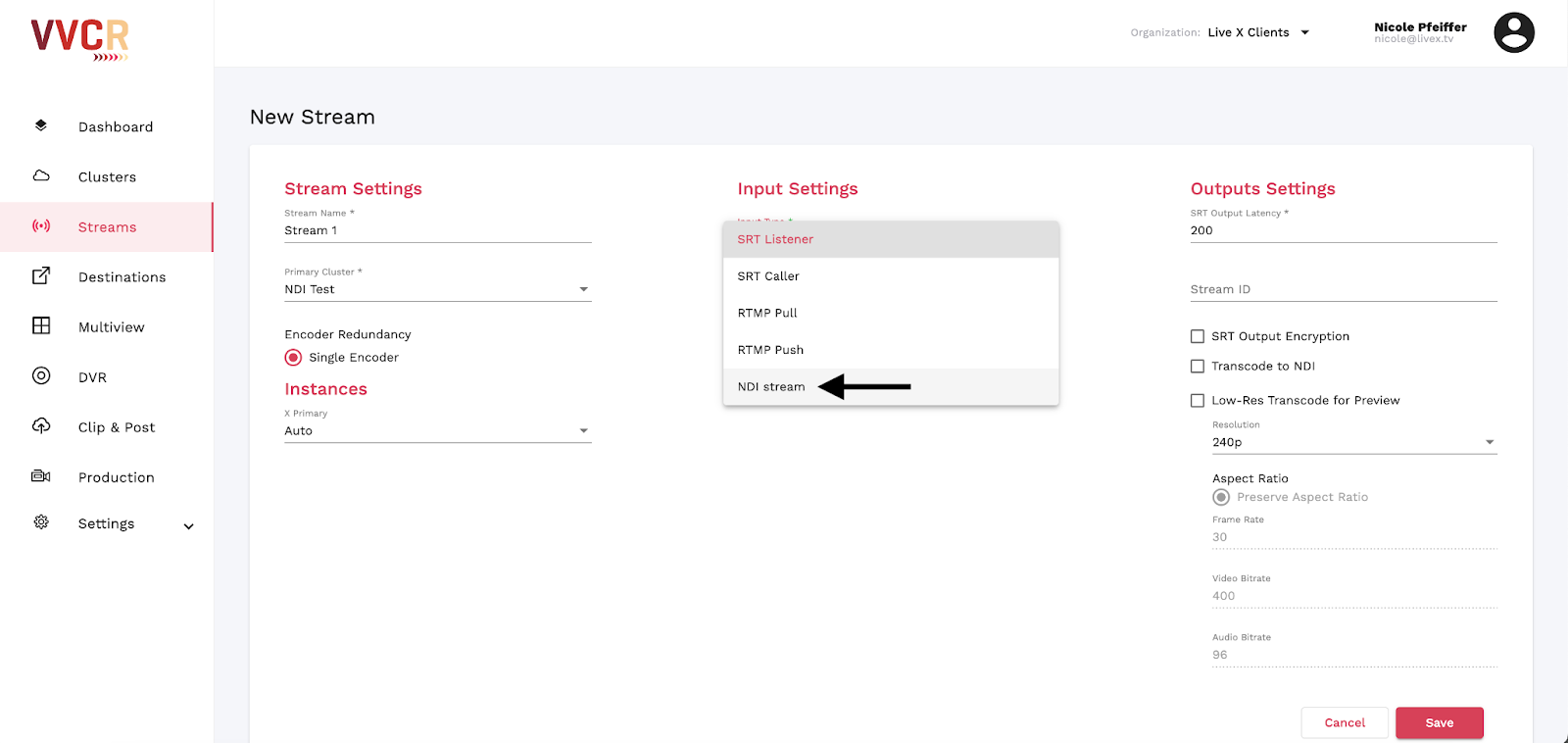

Give the stream a Name. Click on the Input Type dropdown menu and select NDI Stream.

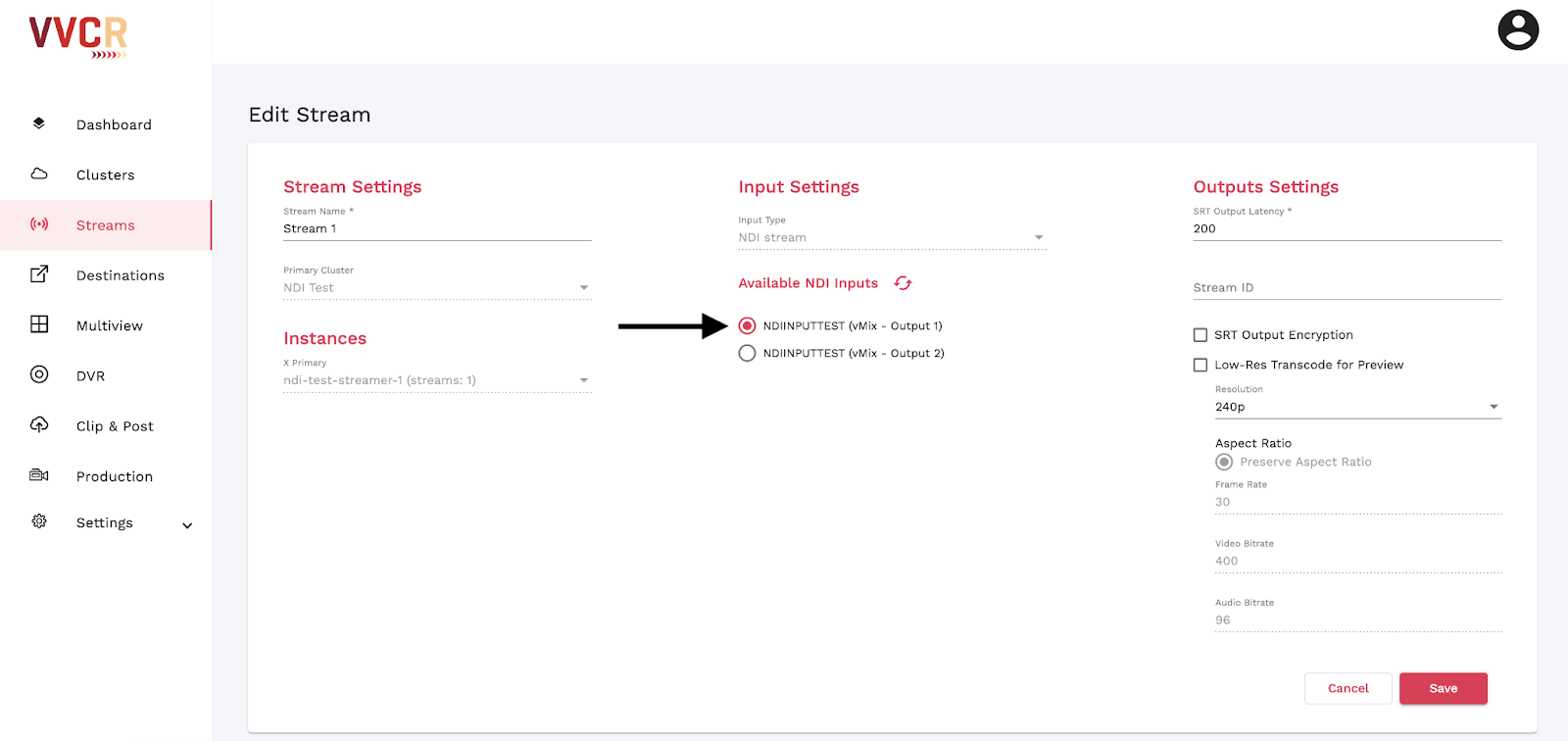

Then select one of the Available NDI Inputs.
Now the stream will behave like a normal VVCR stream.
