Destination Statistics allow you to monitor the health and quality of your stream as it transmits to destinations.
To access the statistics:
- Go to the Destinations Tab

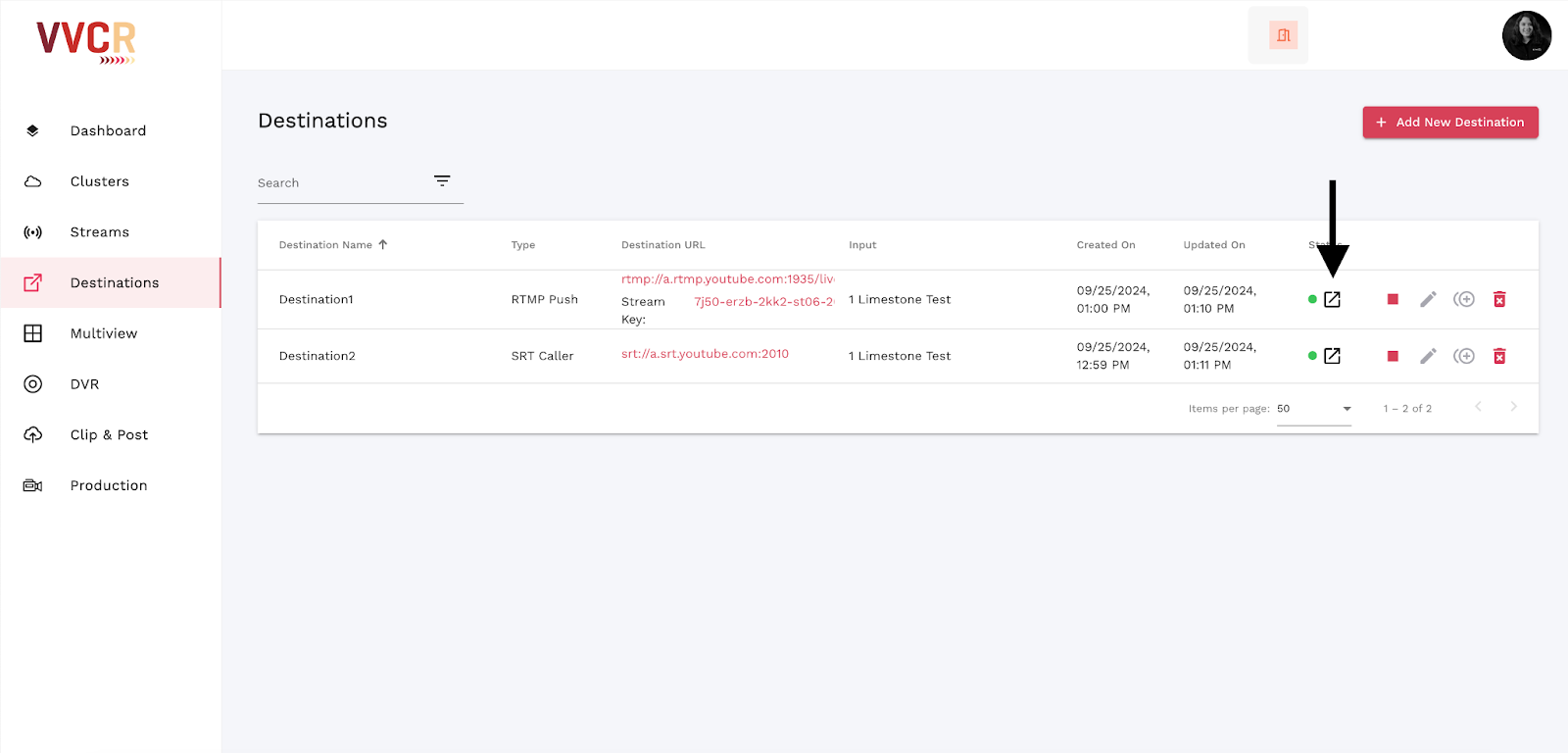

- Click the arrow icon next to Status of the Destination you want to track.
The statistics chart will vary based on the stream's Output Type.
SRT Streams:

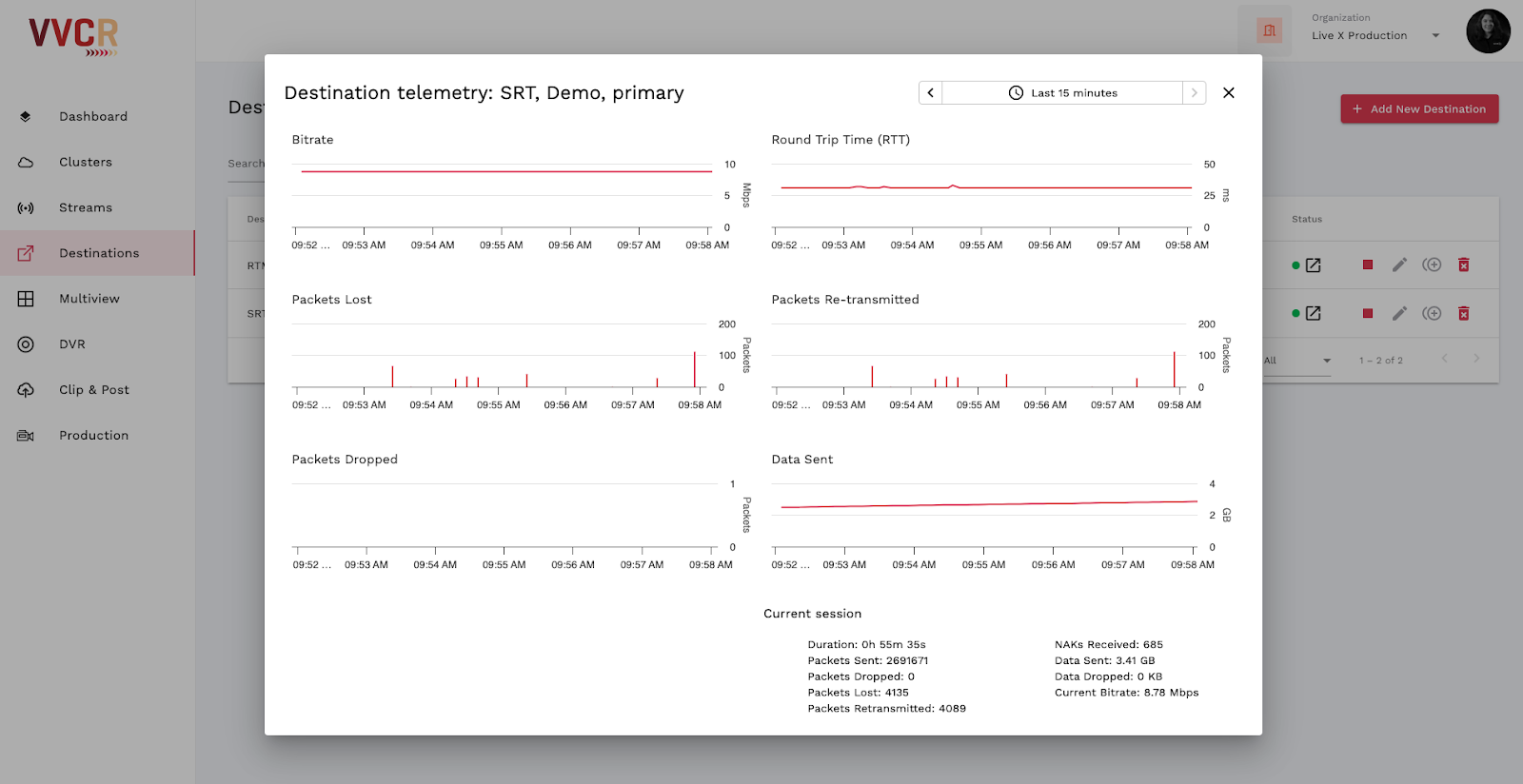

For SRT Streams, the following metrics are tracked in the charts:
- Bitrate
- Round-Trip-Time (RTT)
- Packets Lost
- Packets Retransmitted
- Packets Dropped
- Data Sent
Additionally, the following analytics are available at the bottom of the SRT page:
- Stream Duration
- Total Packets Sent
- Total Packets Dropped
- Total Packets Lost
- Total Packets Retransmitted
- Total NAKs Received
- Total Data Sent
- Total Data Dropped
- Current Bitrate
RTMP Streams:

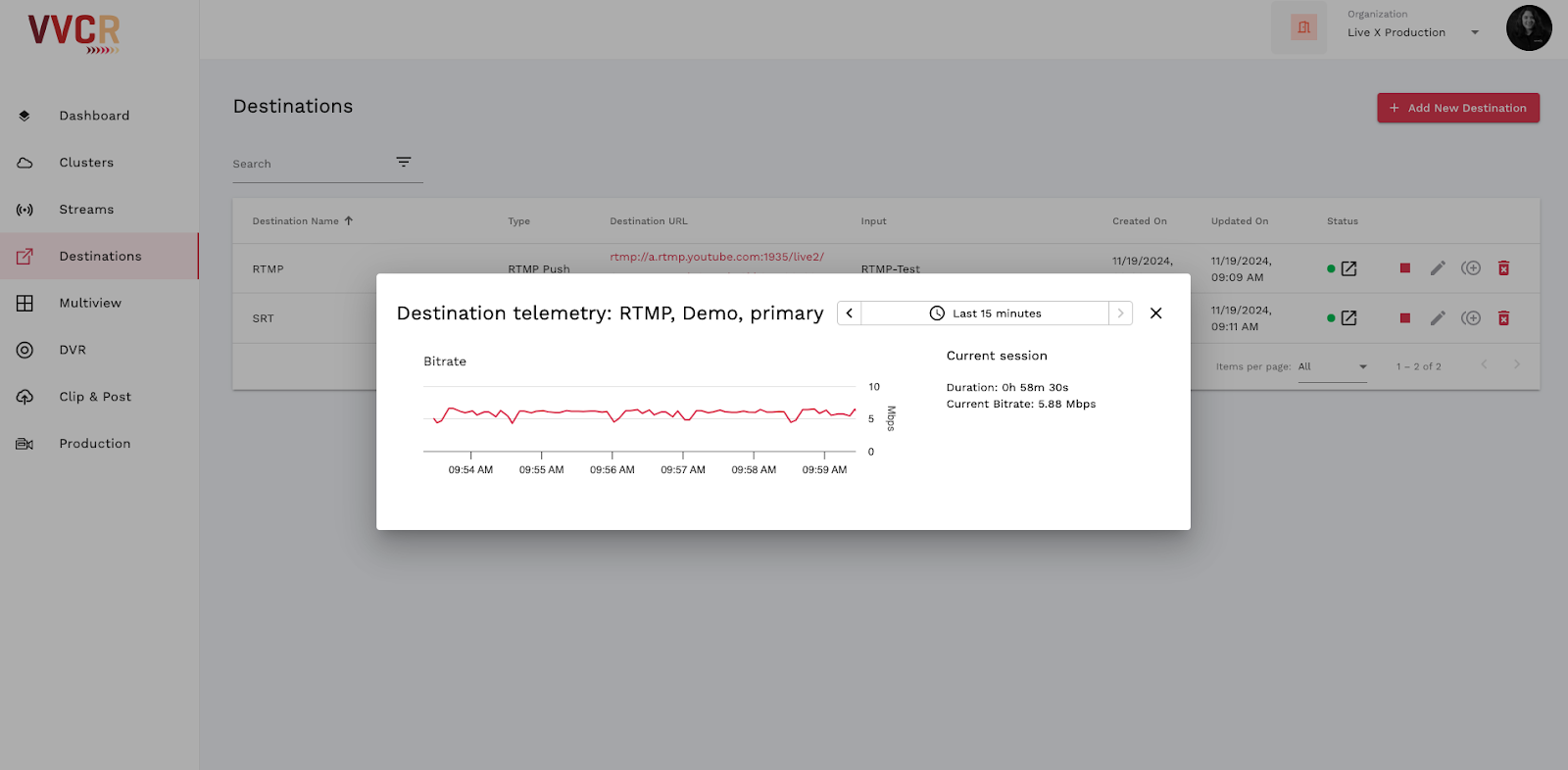

For RTMP Streams, only Bitrate is displayed in the chart. The following information is shown to the right of the chart:
- Stream Duration
- Current Bitrate
Tracking Durations:

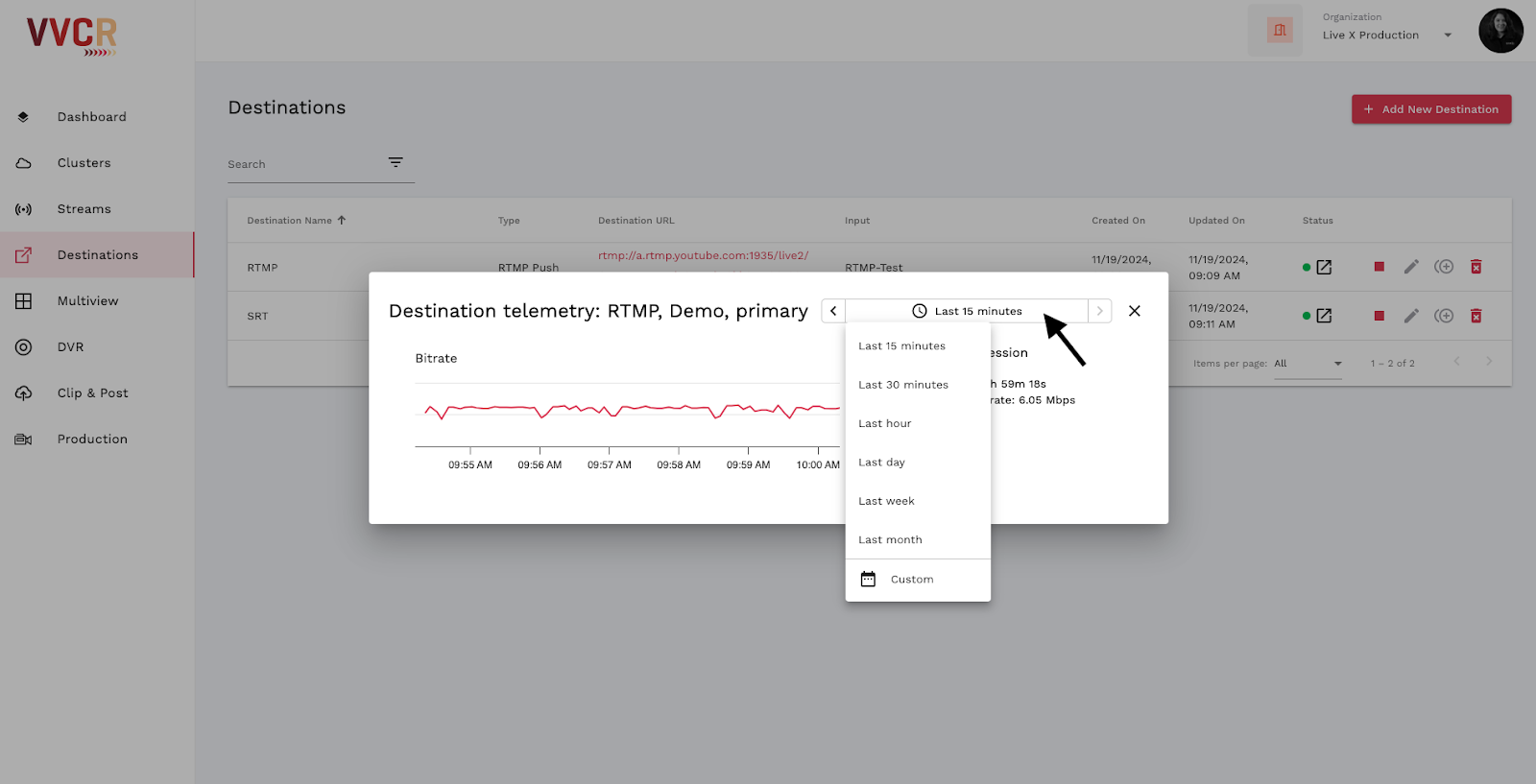

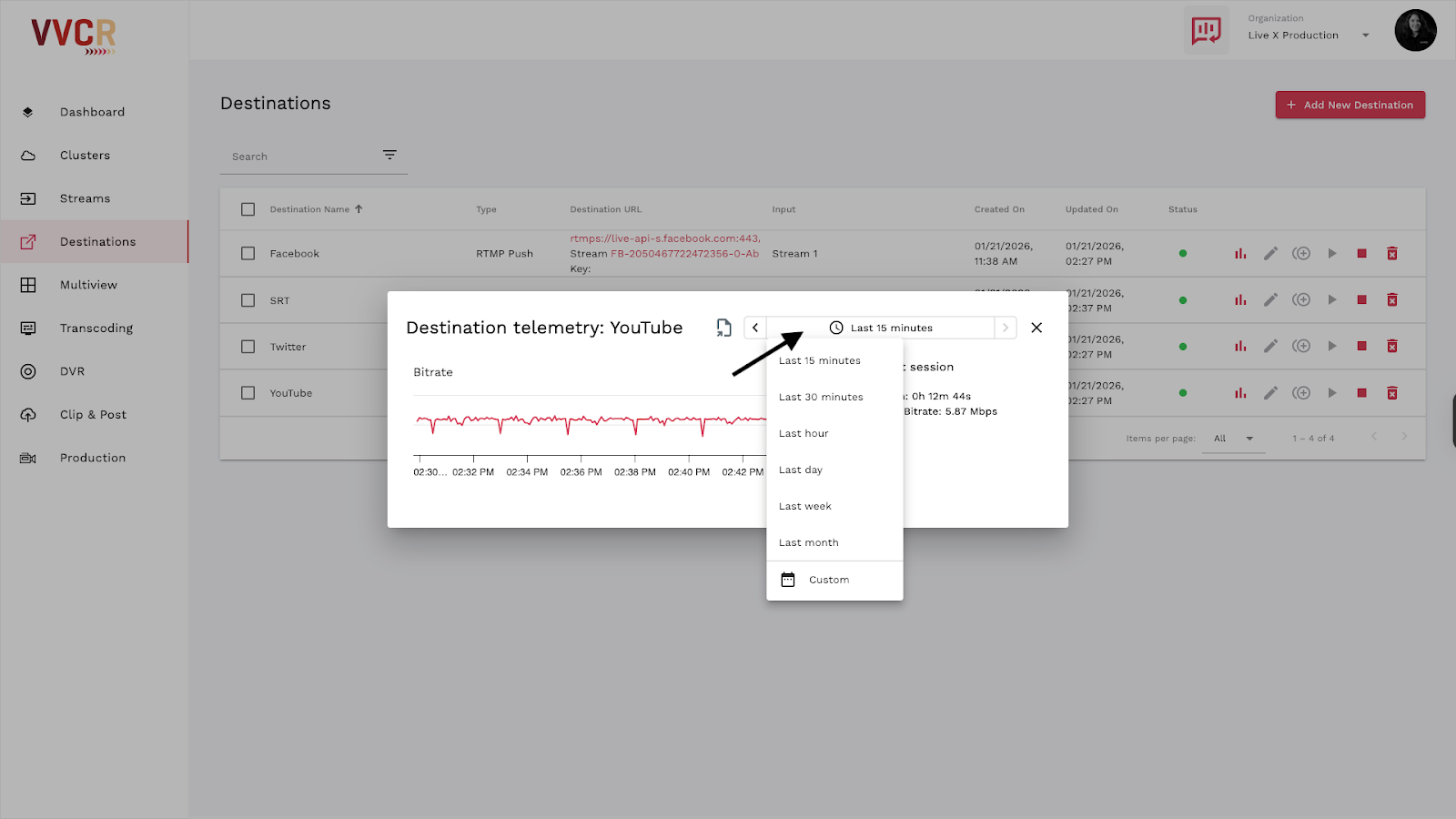

For all Input Types, you can adjust the Tracking Duration by clicking the Clock Icon in the top-right corner. The available time frames are:
- Last 15 minutes
- Last 30 minutes
- Last Hour
- Last Day
- Last Week
- Last Month
- Custom Duration
Click here to learn more about Stream and Destination Statuses.
Click here to learn more about Stream Statistics.
