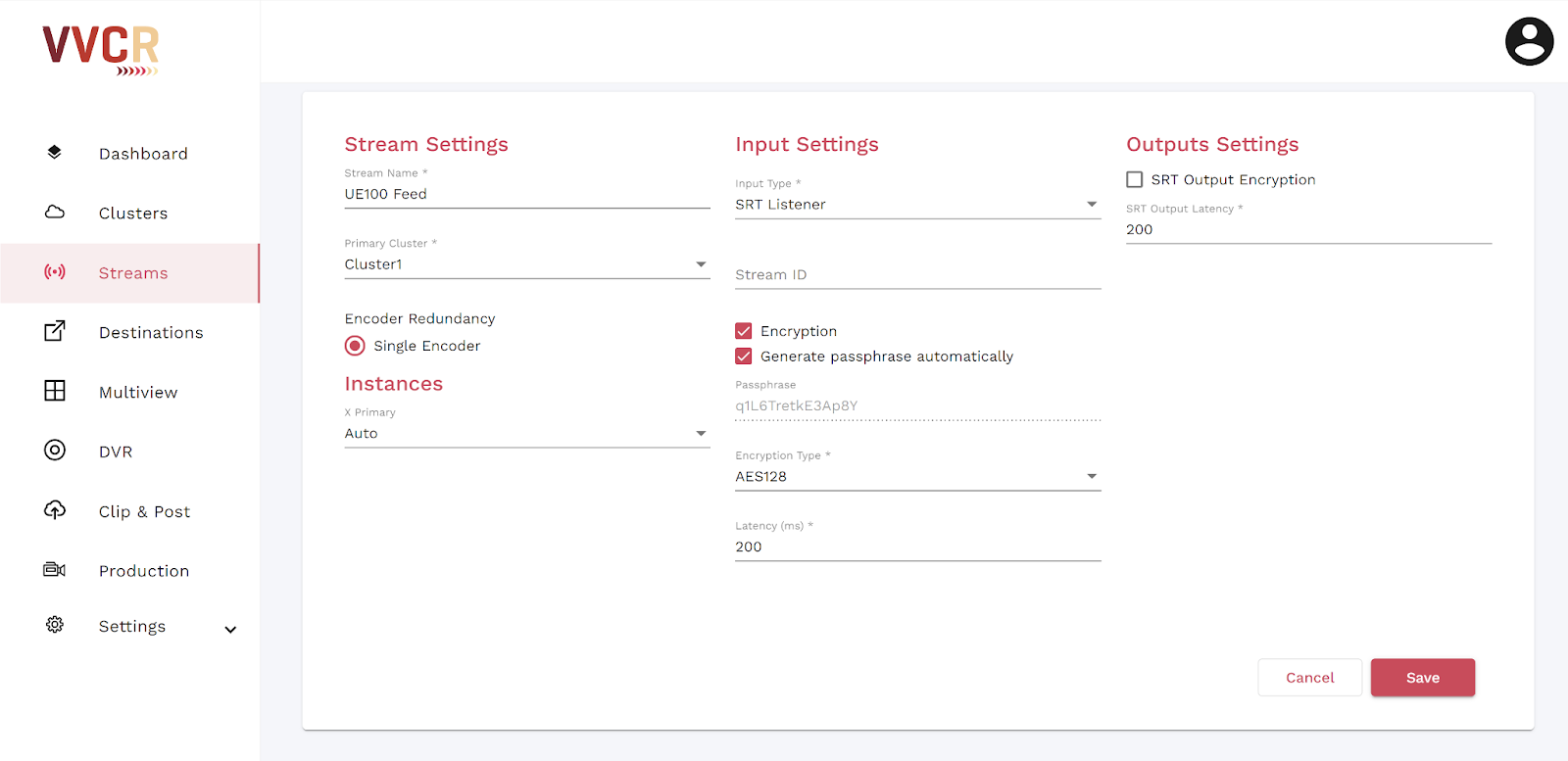

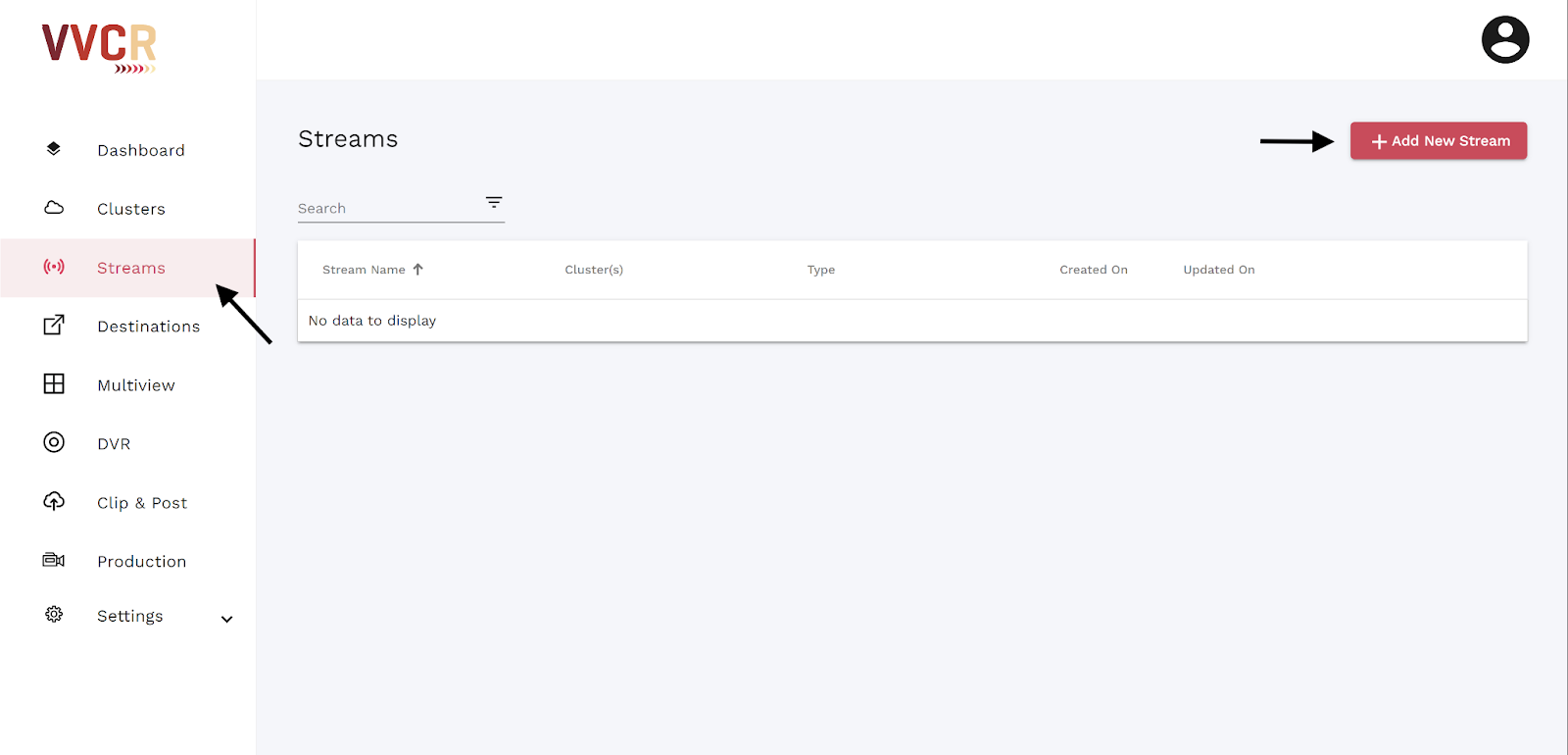

Go to the Streams tab and click Add New Stream.
Leave the Input Type on SRT Listener and enable encryption if needed.
Press Save.
Go to the web interface for the UE100.

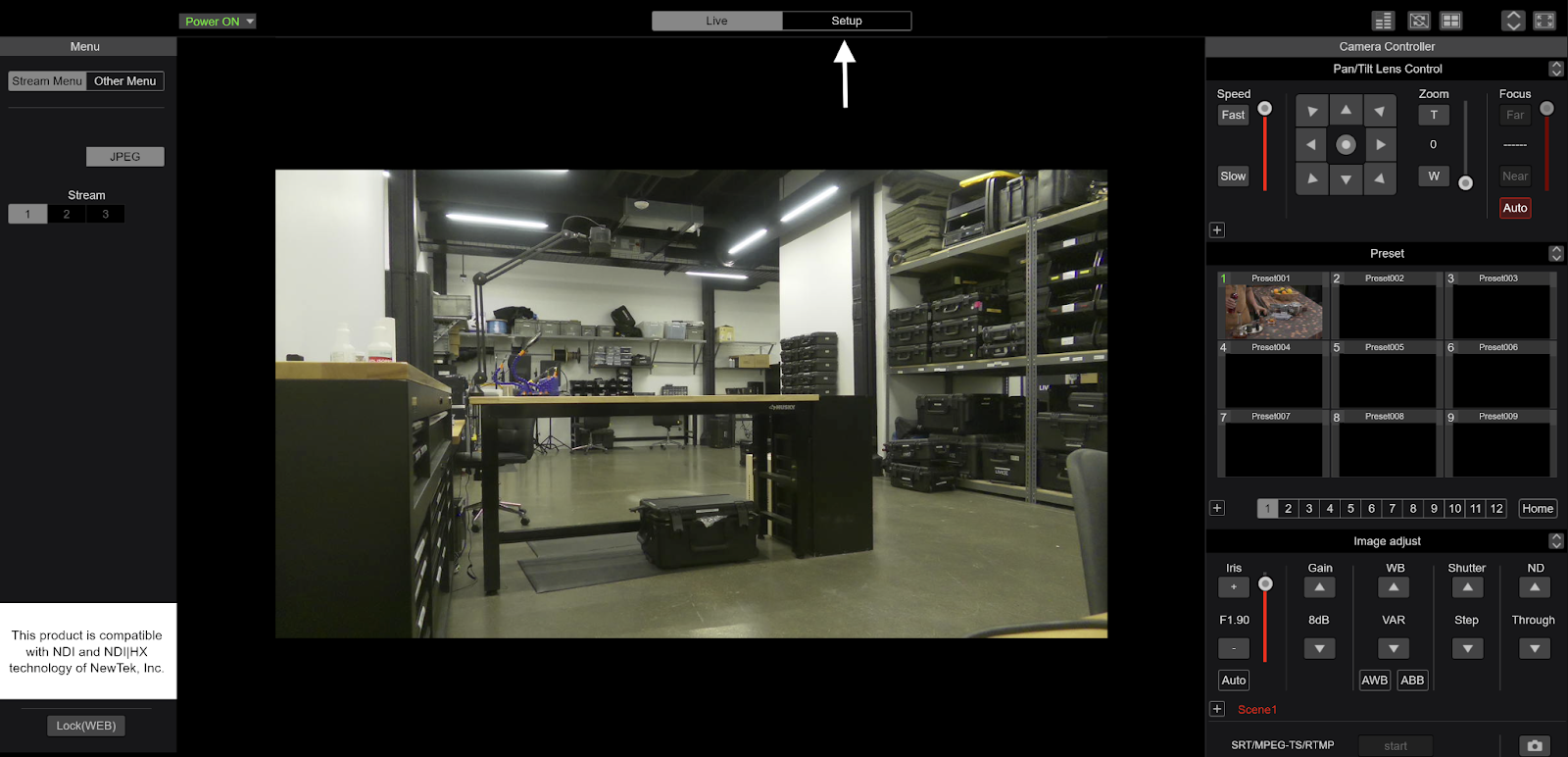

Click on the Setup tab near the top of the screen.
Select Video Over IP.

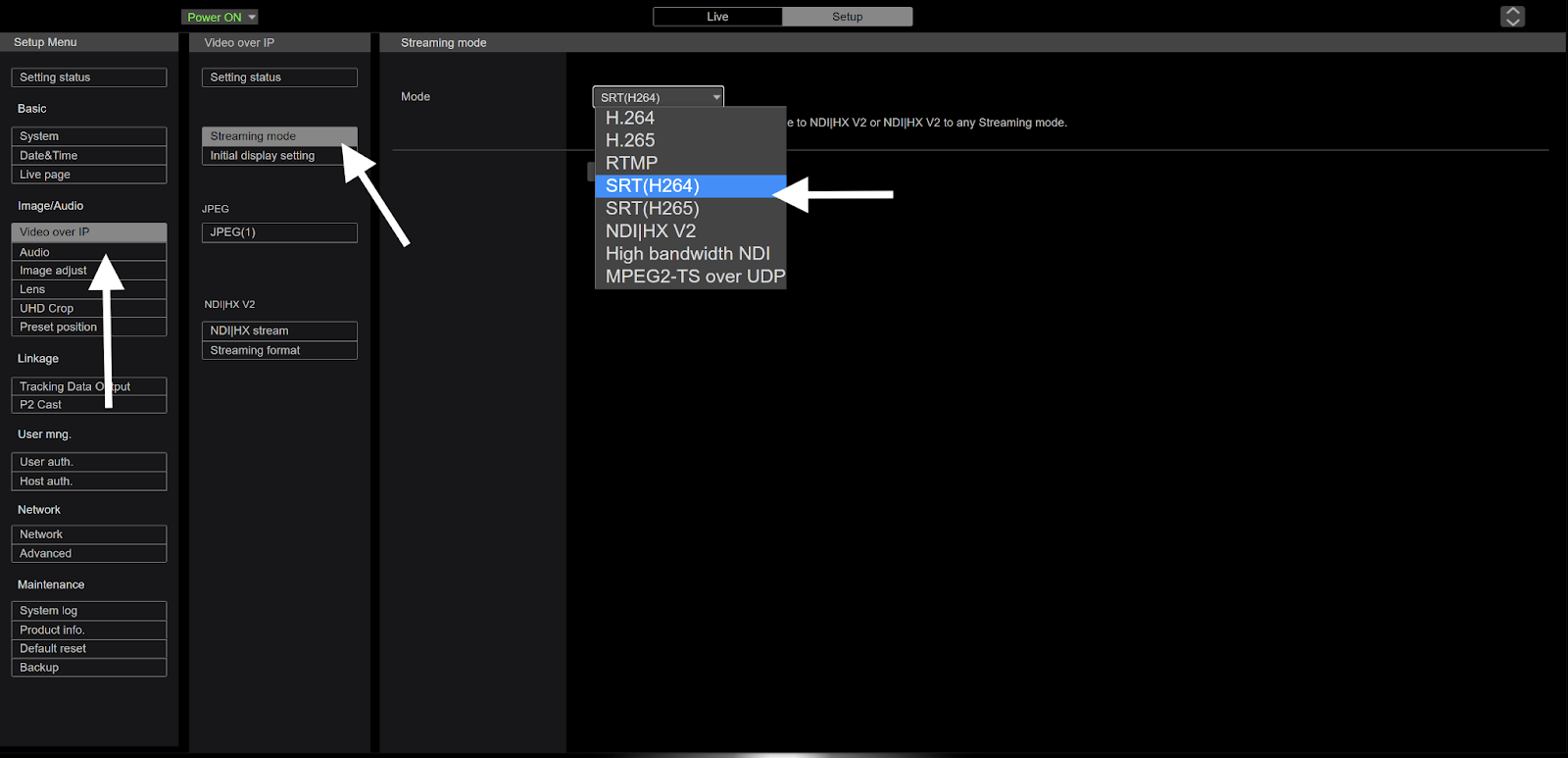

Click Streaming Mode.
Select SRT(H264) or SRT(H265).
Press Set.

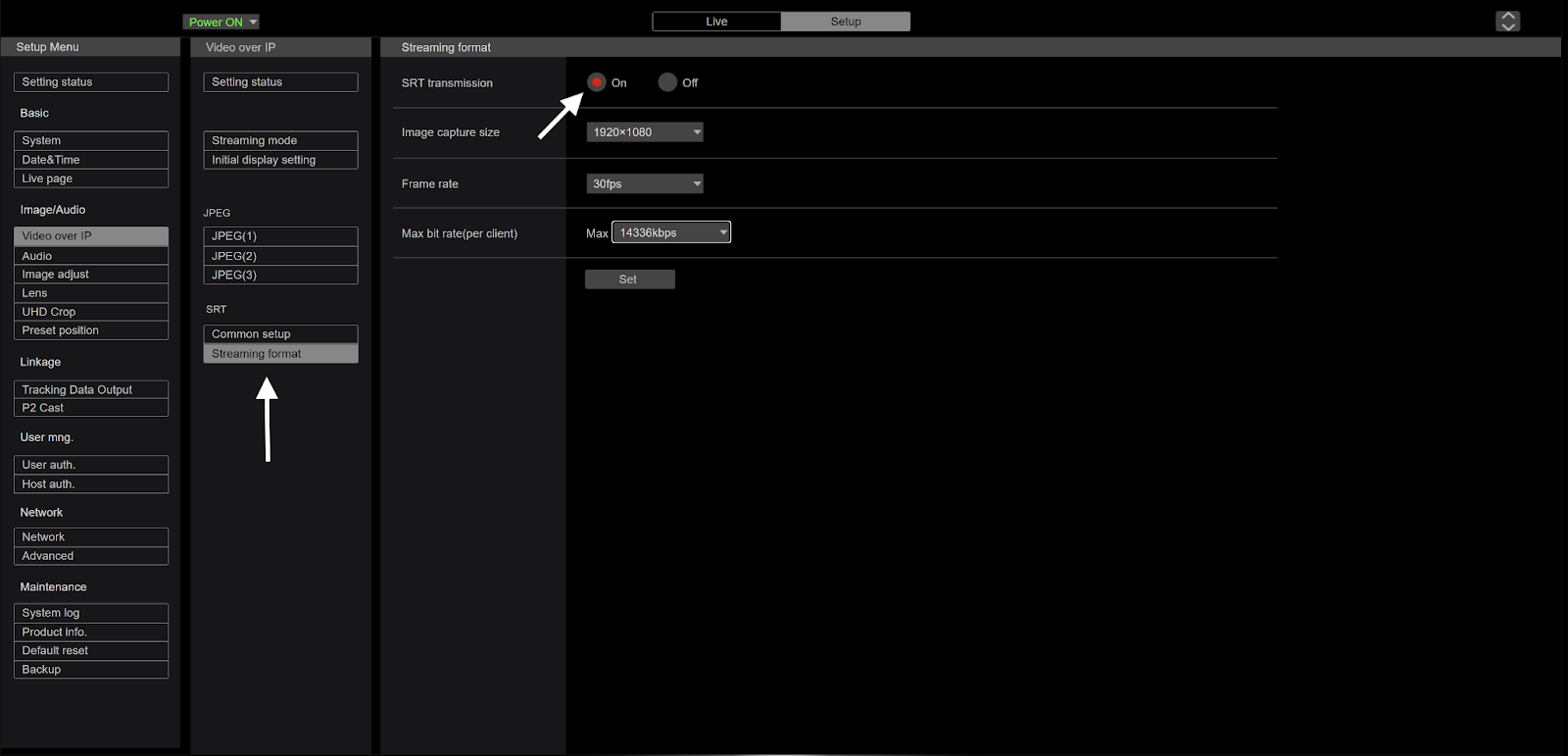

Click on Streaming Format. Make sure SRT Transmission is on. Adjust the resolution, framerate, and bitrate as needed.
Press Set if you make any changes.

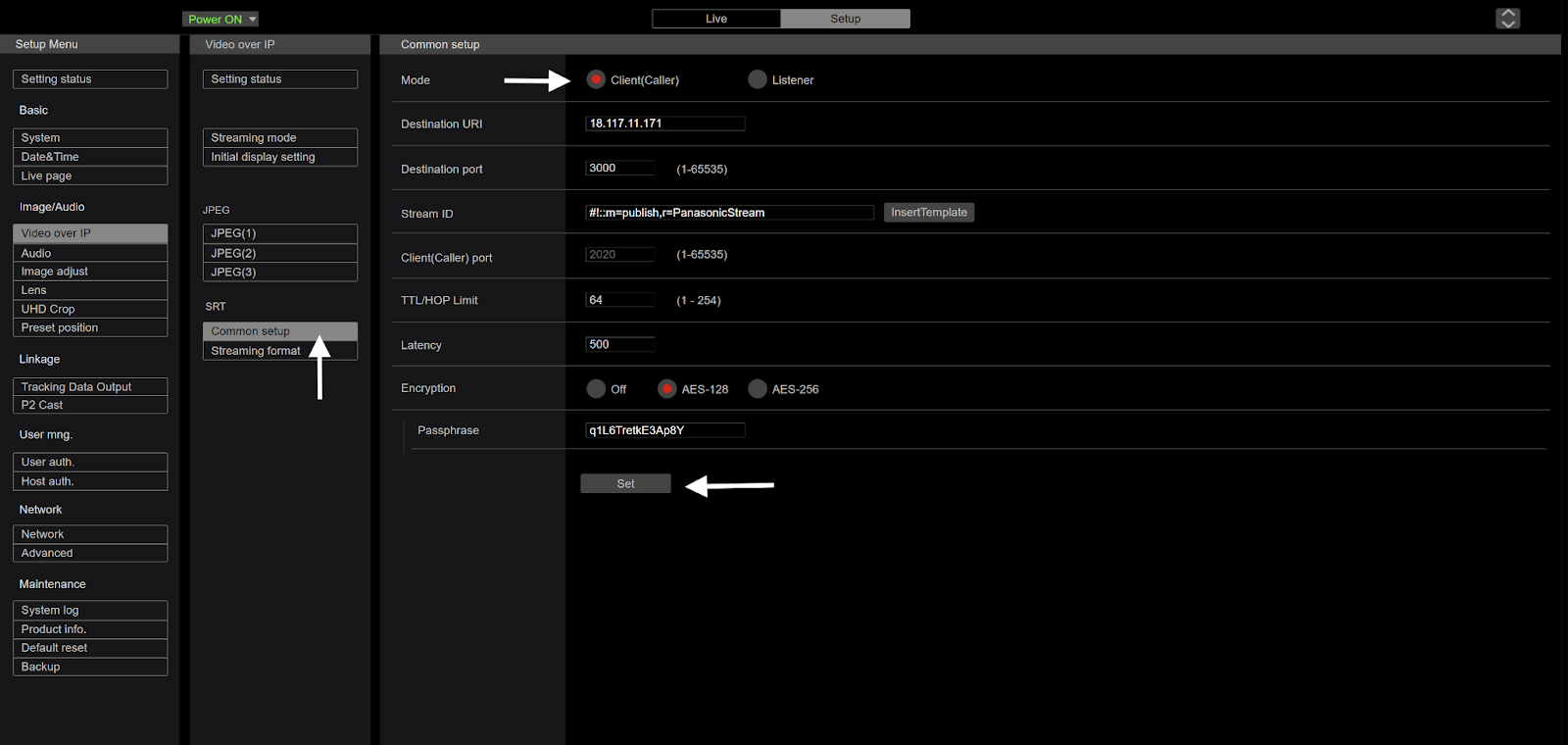

Click on Common Setup.
Select Client(Caller) Mode.
Copy the IP Address and Port Number from the VVCR Stream.
Go back to the UE 100 interface and paste the IP Address under Destination URL and the Port Number under Destination Port. Make sure to delete the “srt://” and the ”:” from the IP Address.
If you enabled encryption in VVCR, enable the correct Encryption Type and paste in the VVCR password.

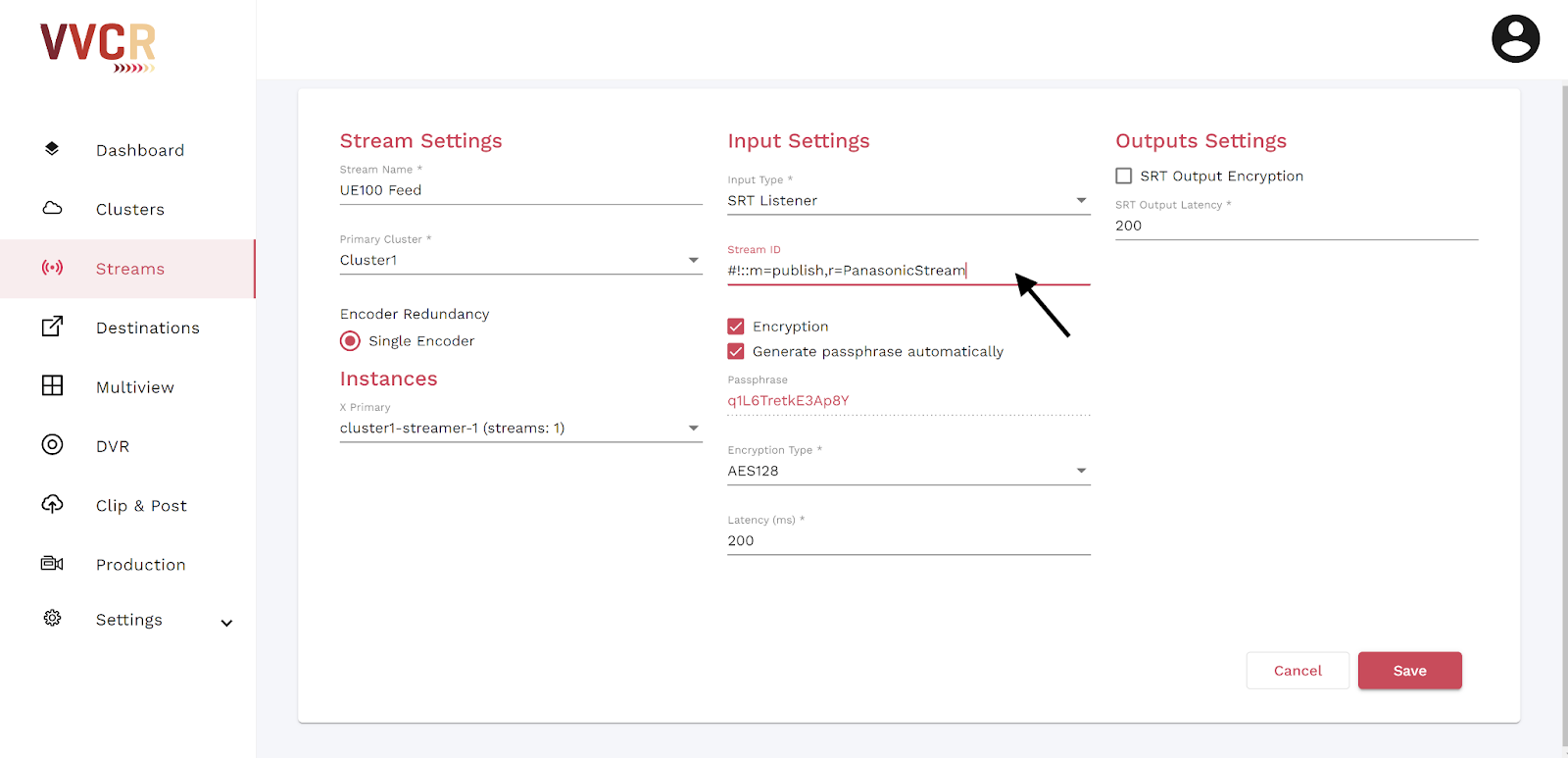

Copy the Stream ID from the UE100 and paste it into the stream settings in VVCR.
Press Save.
Go back to the UE100 and press Set.
Click on the Live tab at the top of the screen.

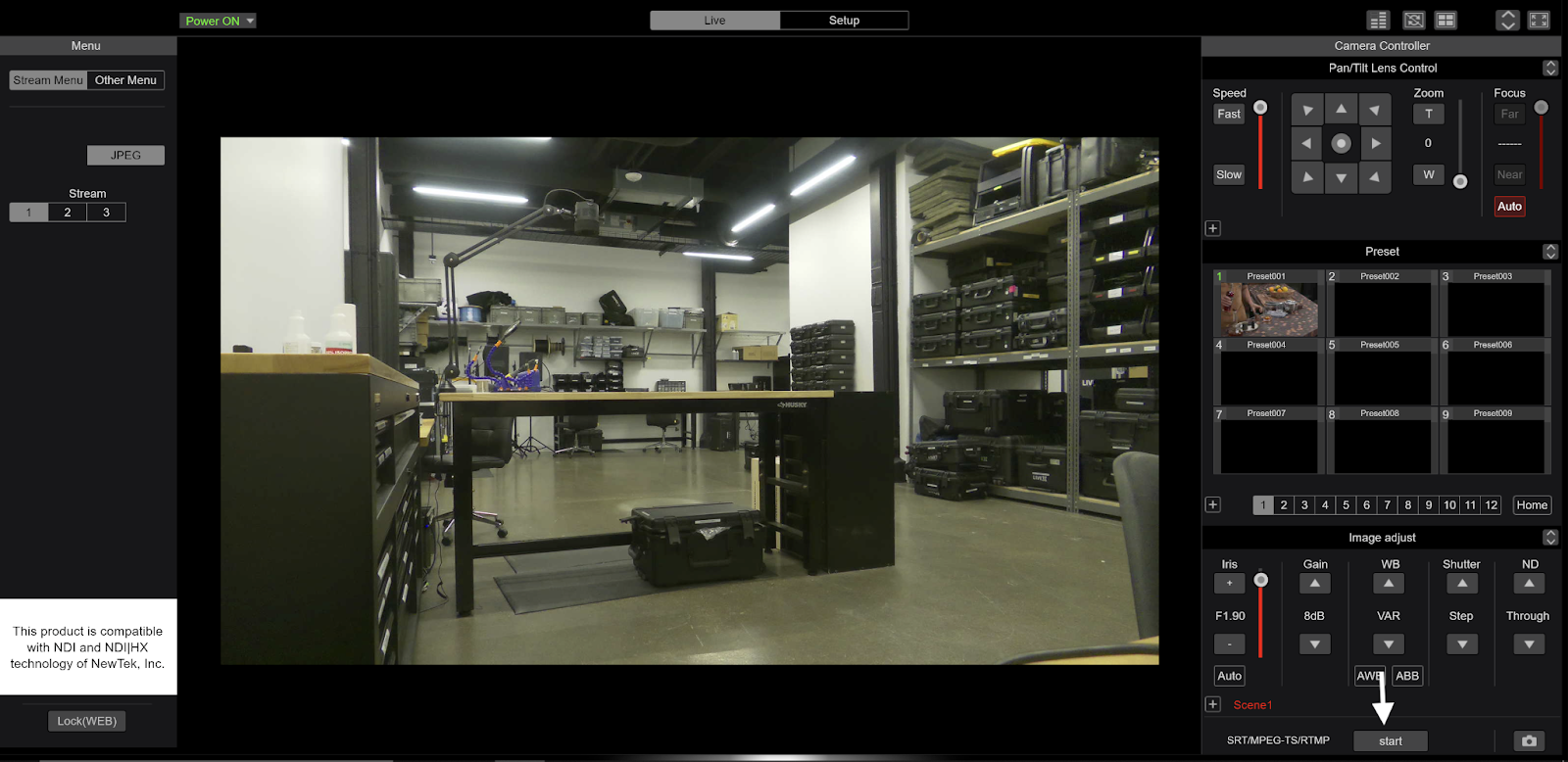

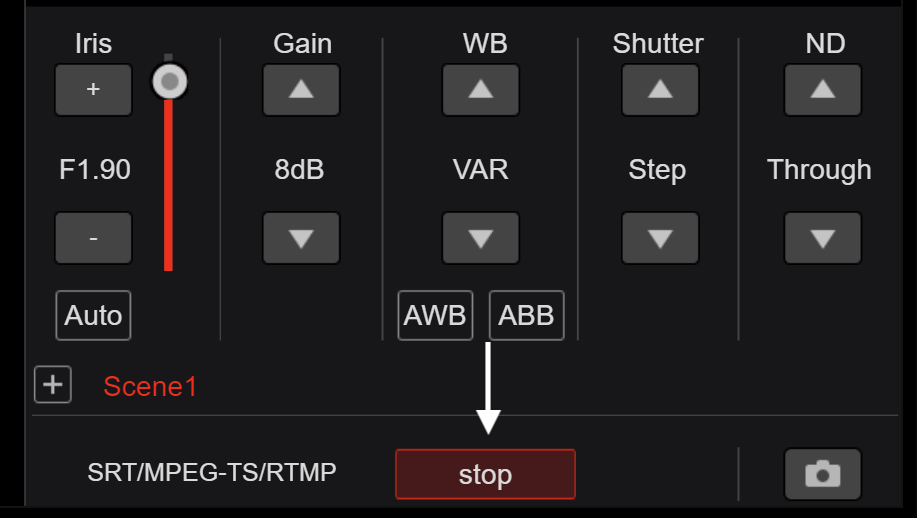

Press the Start button towards the bottom of the screen.
The button will turn red and say Stop once it starts streaming.
Go back to VVCR.

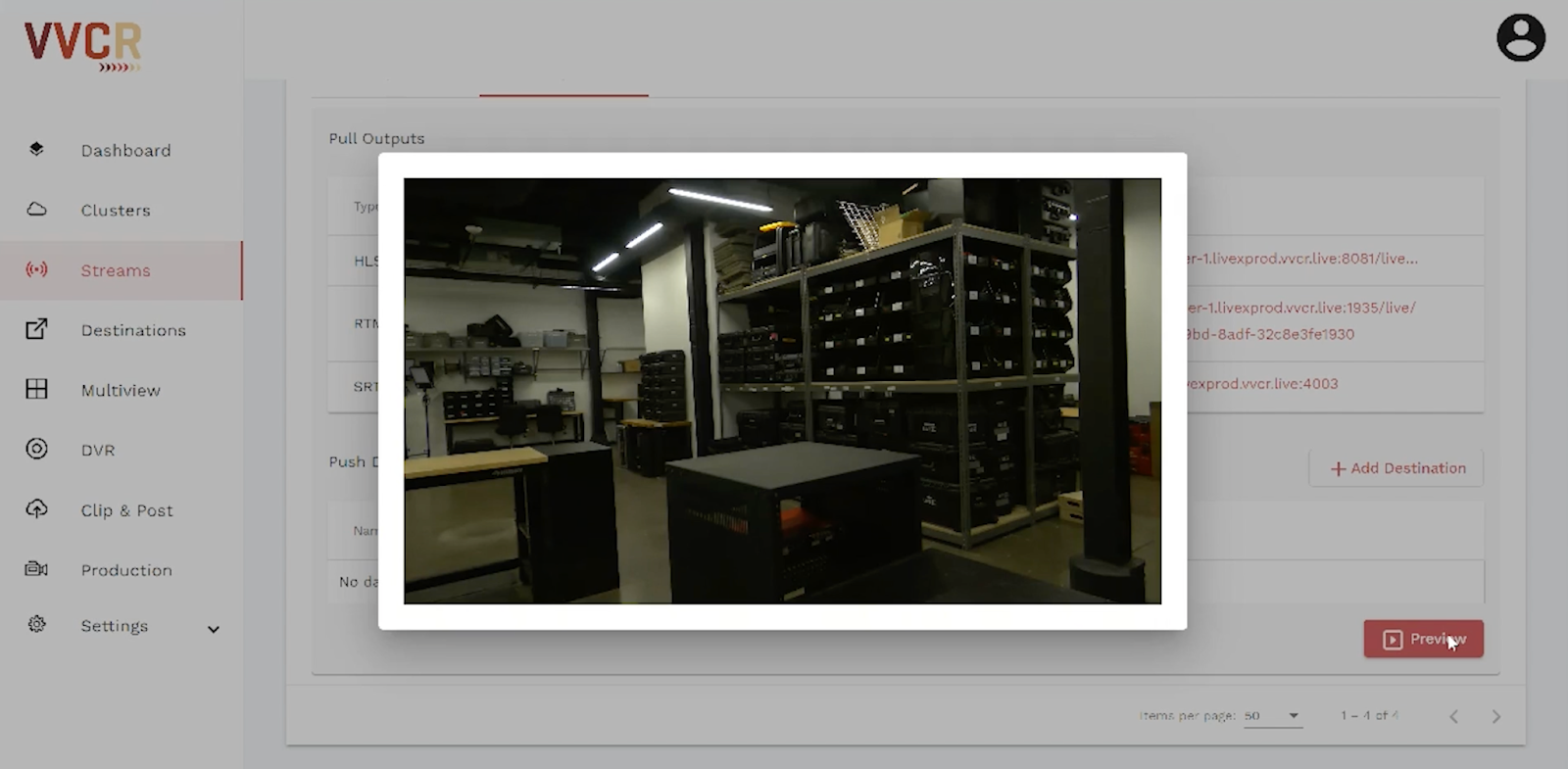

Select the Outputs tab for the stream and press Preview.
