Stream Statistics allow you to monitor the health and quality of your stream as it transmits to the VVCR.

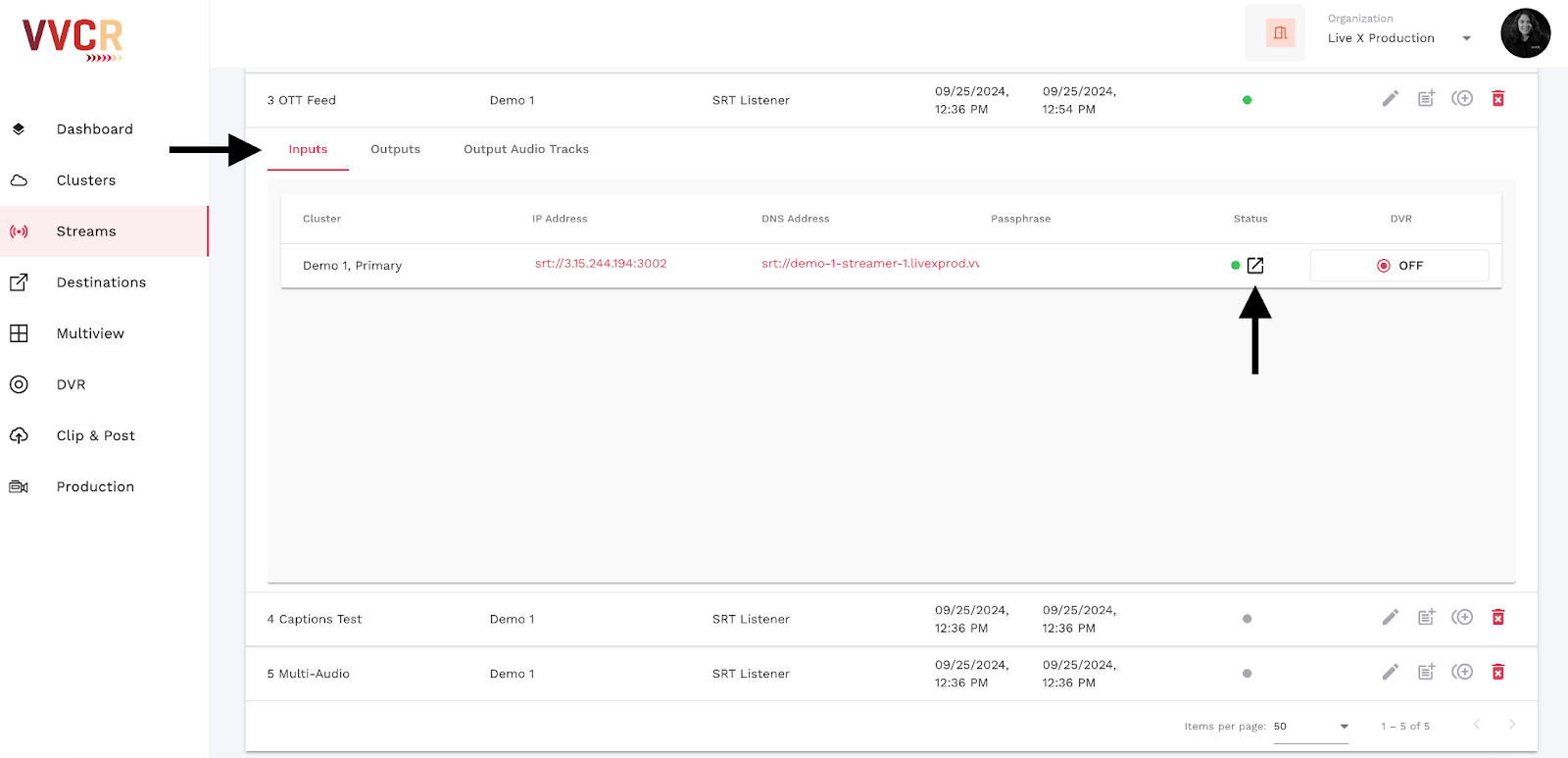

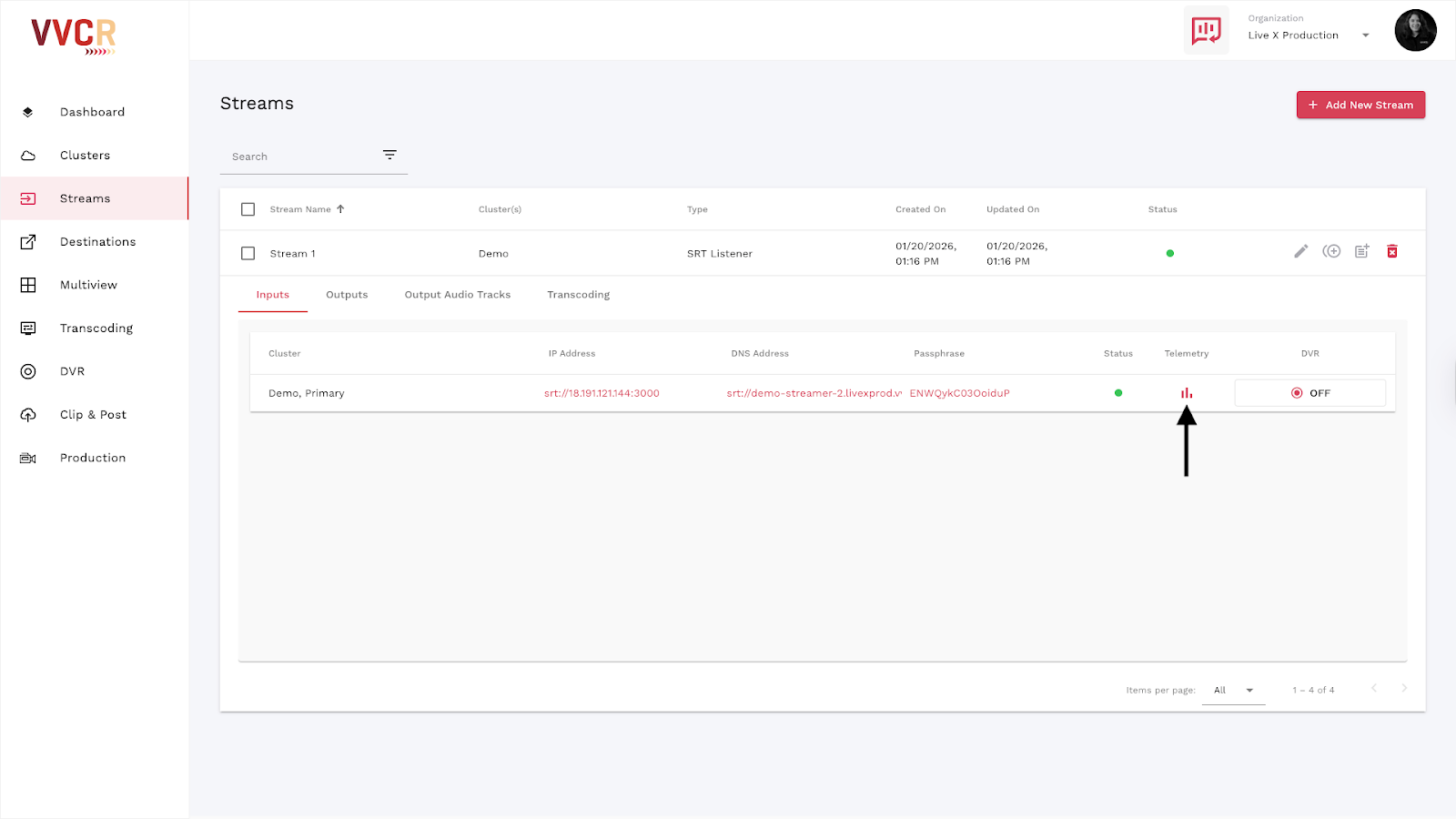

To access the statistics:
- Select a Stream.
- Click on the Inputs tab.
- Click the arrow icon next to Stream Status.
The statistics chart will vary based on the stream's Input Type.

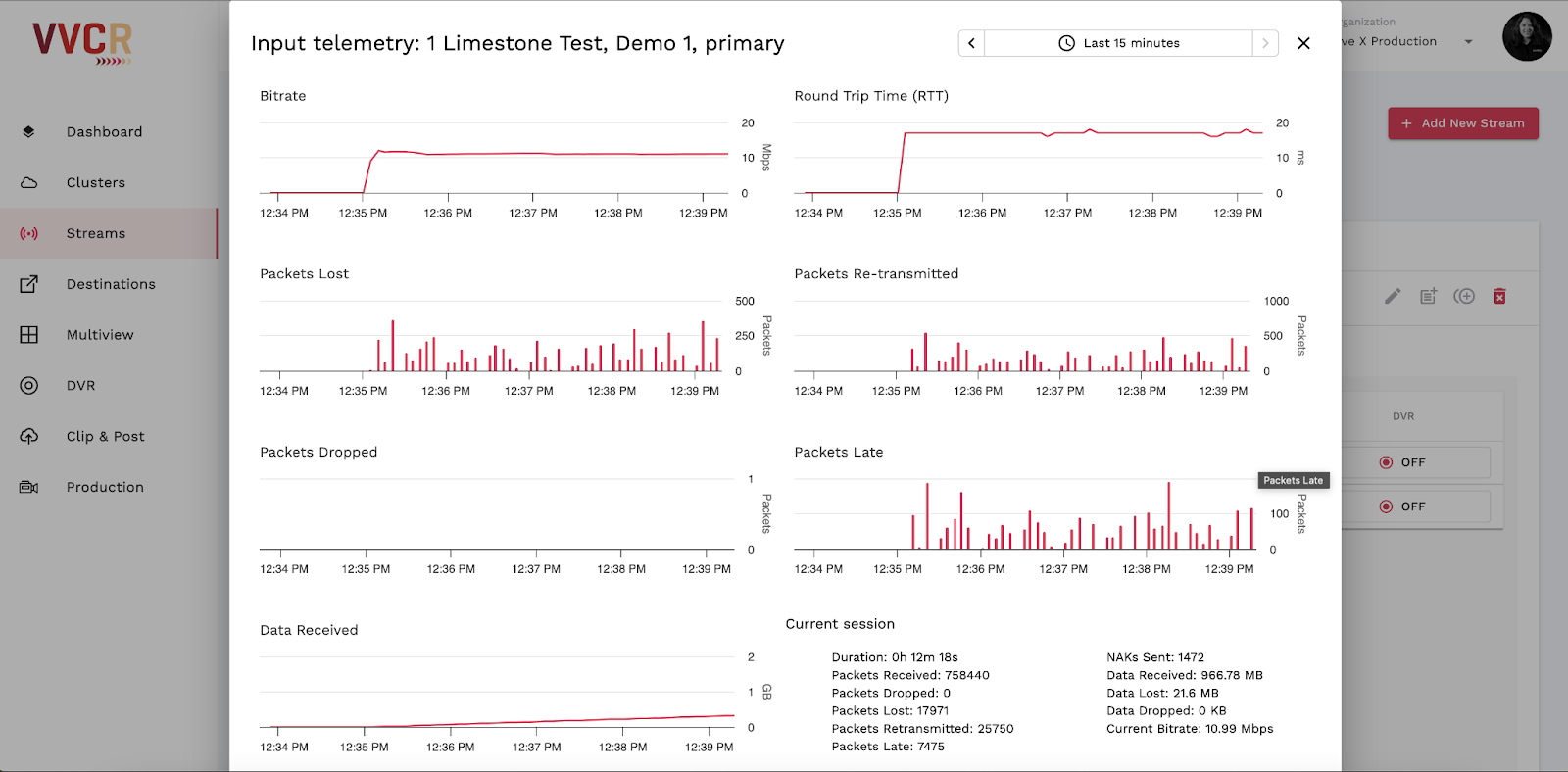

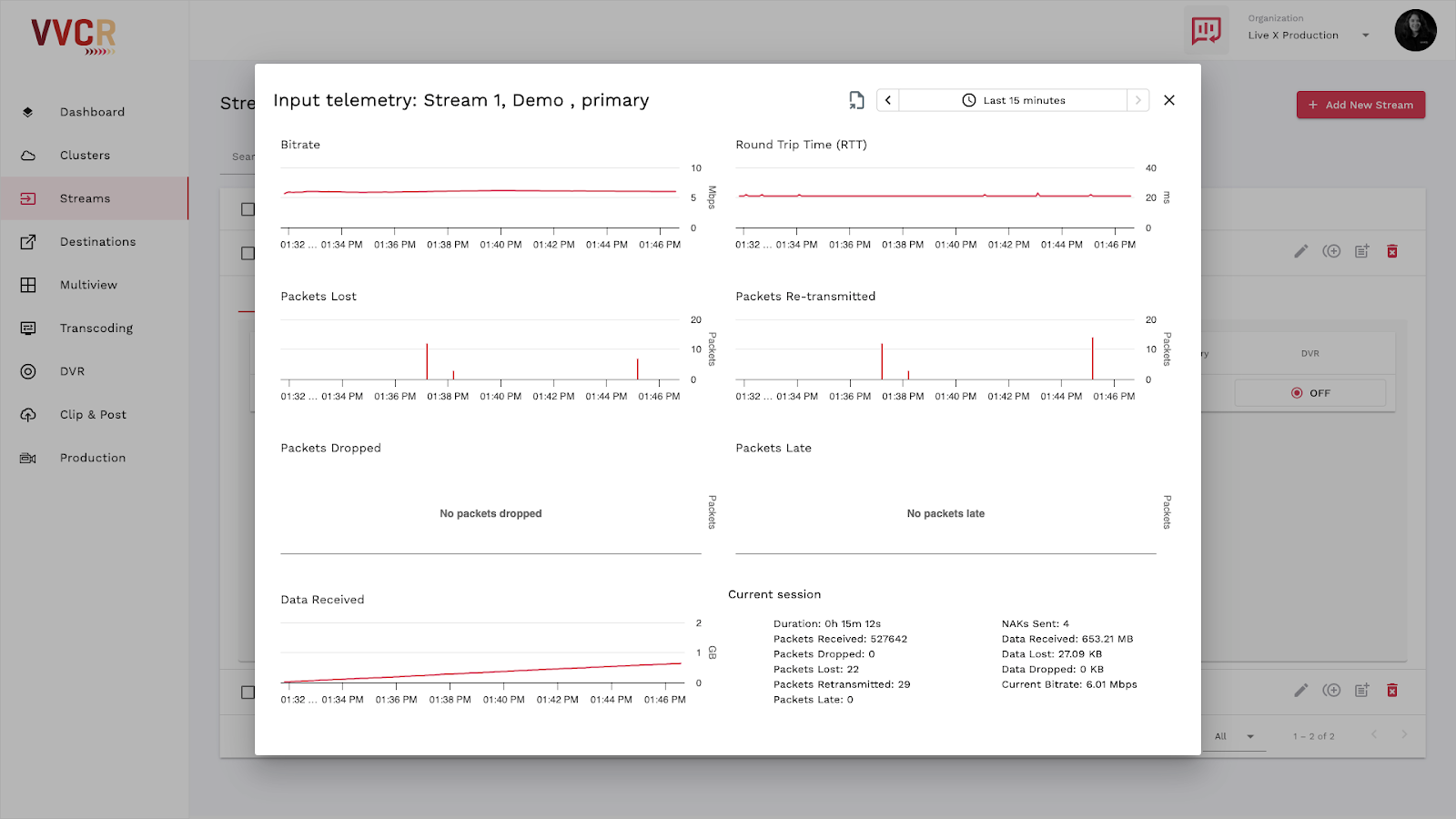

SRT Streams:
For SRT Streams, the following metrics are tracked in the charts:
- Bitrate
- Round-Trip-Time (RTT)
- Packets Lost
- Packets Retransmitted
- Packets Dropped
- Packets Late
- Data Received
Additionally, the following analytics are available at the bottom of the SRT page:
- Stream Duration
- Total Packets Received
- Total Packets Dropped
- Total Packets Lost
- Total Packets Retransmitted
- Total Packets Late
- Total NAKs Sent
- Total Data Received
- Total Data Lost
- Total Data Dropped
- Current Bitrate

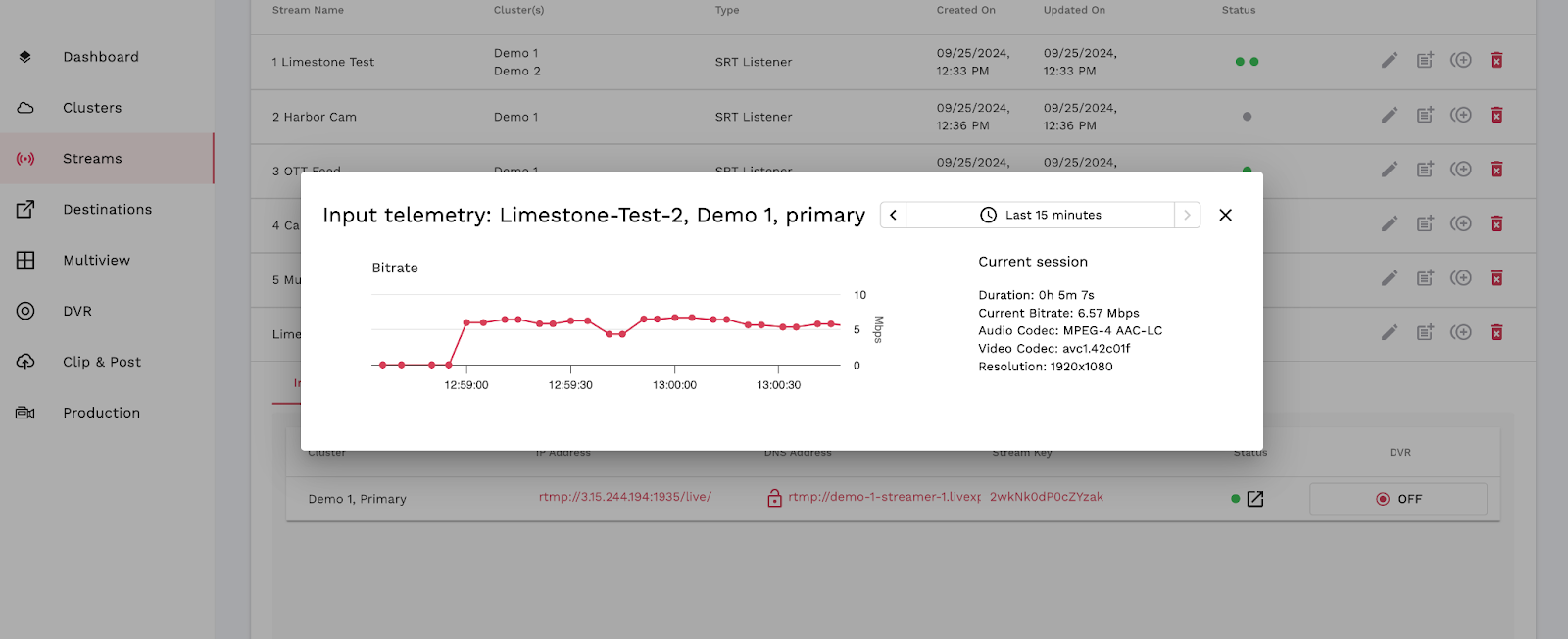

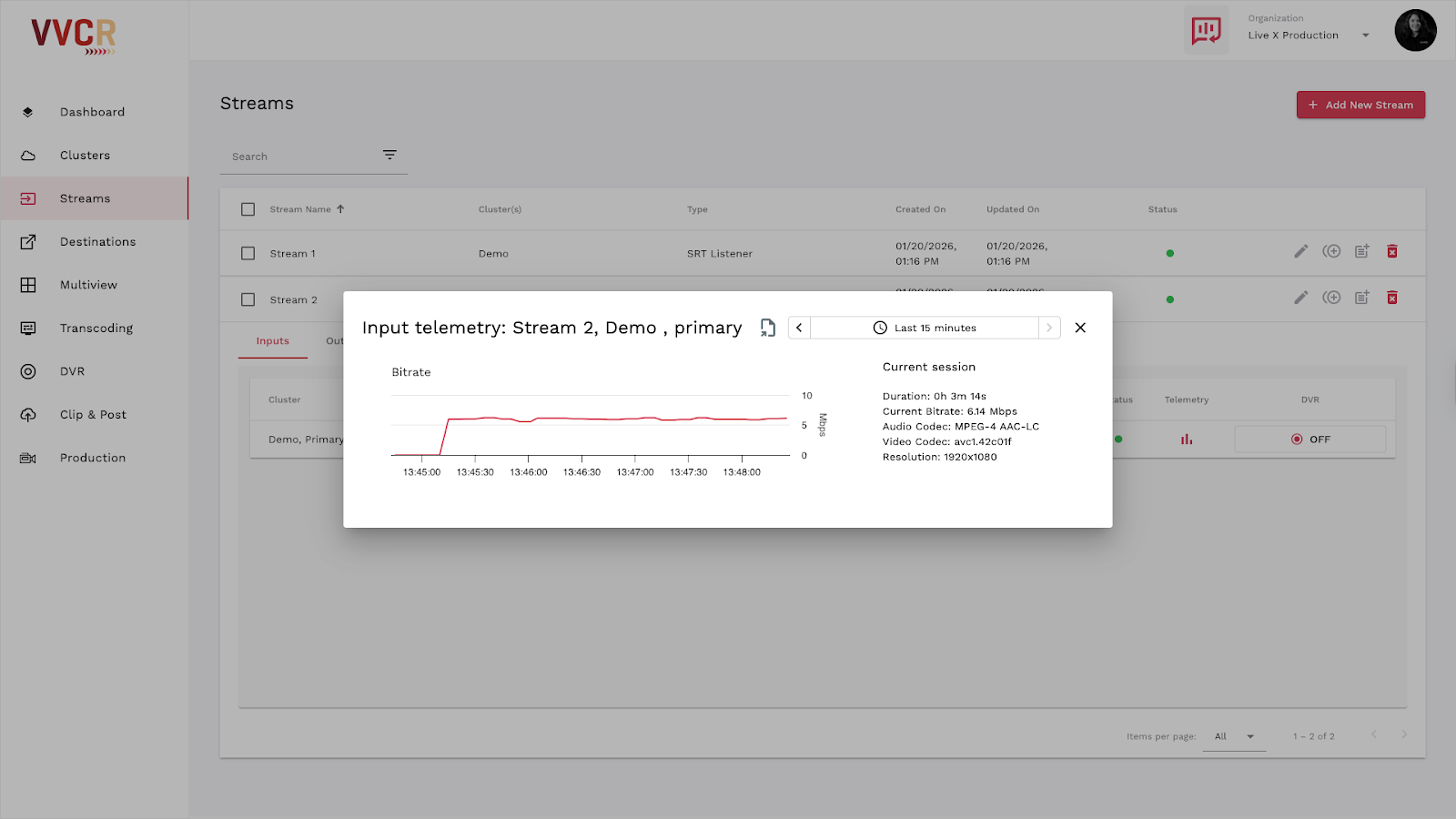

RTMP Streams:
For RTMP Streams, only Bitrate is displayed in the chart. The following information is shown to the right of the chart:
- Stream Duration
- Current Bitrate
- Audio Codec
- Video Codec
- Resolution

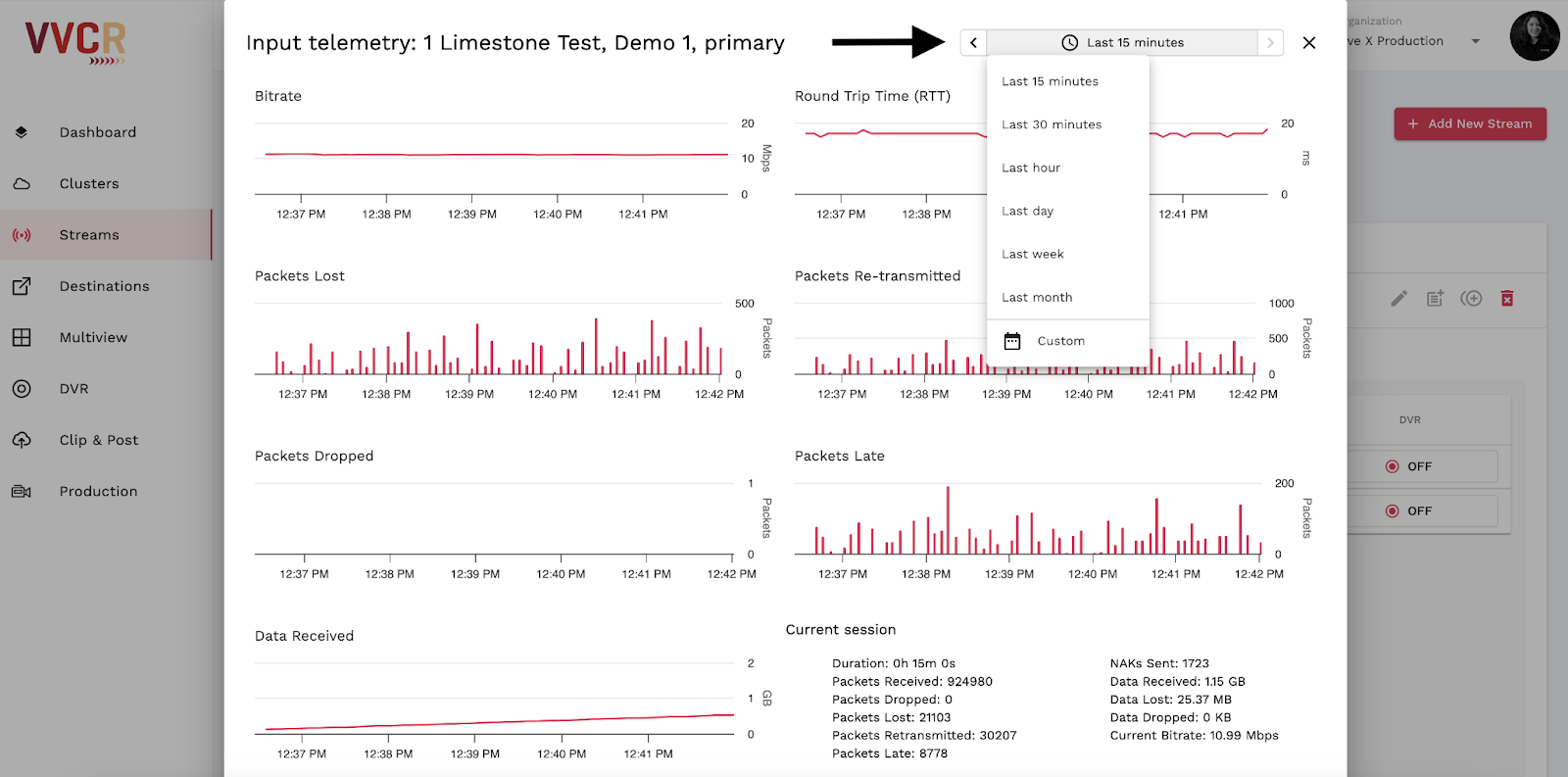

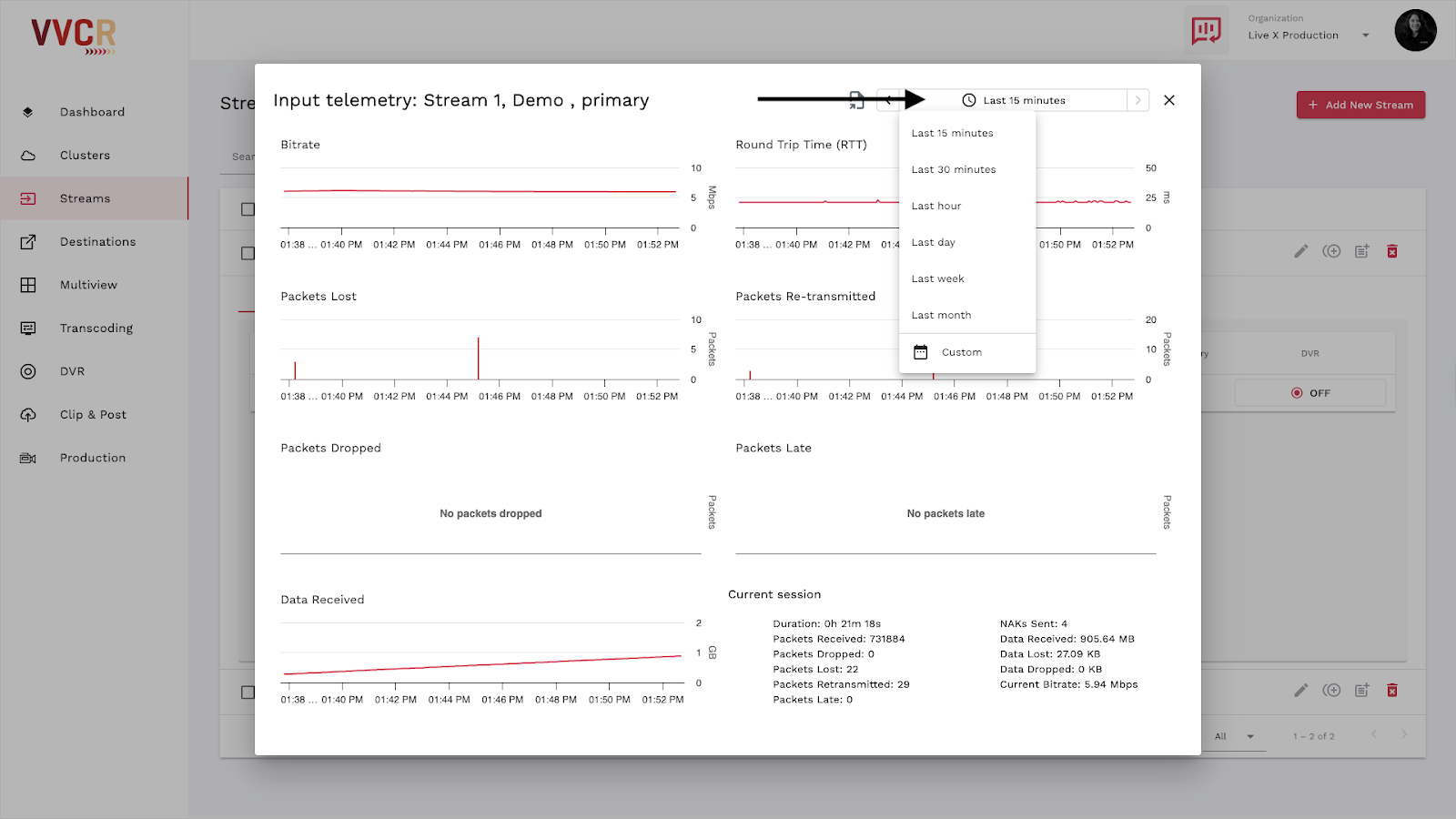

Tracking Durations:
For all Input Types, you can adjust the Tracking Duration by clicking the Clock Icon in the top-right corner. The available time frames are:
- Last 15 minutes
- Last 30 minutes
- Last Hour
- Last Day
- Last Week
- Last Month
- Custom Duration
Click here to learn more about Stream and Destination Statuses.
Click here to learn more about Destination Statistics.
